| Capacity: | 3000BPH | Filling Material: | Oil,Sauce,Vinegar,fruit&vegetable Paste |
|---|---|---|---|
| Function: | Filling ,capping | Power: | 2.2kw |
| Weight: | 2000kg | Overall Dimensions (LxWxH): | 1900x1800x2200mm |
| Condition: | New | Driven Type: | Electric+pneumatic |
| High Light: | 2L palm oil filling machine,3000BPH cooking oil filling machine,2L palm oil packing machine |
||
Specifations

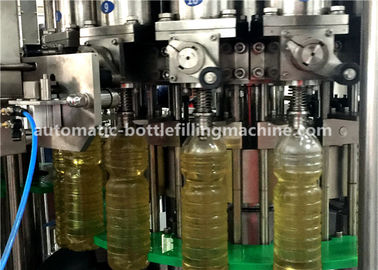

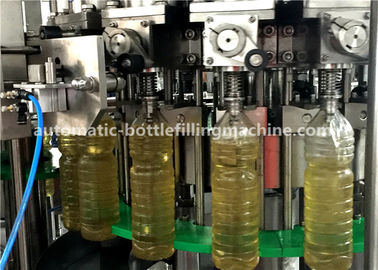

1. 2-in-1 Rotary type,Piston volumetric filling
2. This 2-in-1 unit machine is suitable for filling paste or oil product, such as ketchup, jam, fruit and vegetable paste, cooking oil, honey, corn soup, peanut paste, sauce. It also can be used for pulp, edible bird's nest, aloe, rice wine and so on.
Technical parameter
| Model | YGF18-6 |
| Capacity/1L BOTTLE | 3000BPH |
| Filling head | 18 |
| Capping head | 6 |
| Filling time | 5 second(approx)(100ml/min) |
| Filling temperature | 18-20℃ |
| Filling tank | Semi closed type filling tank, using worm gear to adjust the height |
| Filling valve | Using cam to force down |
| Speed control | AC MOTOR+REDUCER+INVERTER |
| Gas consumption | 100NL/min(5-6Kg/cm²)(take 100EA as the base) |
| Power | 2.2Kw |
| Weight | 2000 Kg |
| Overall dimensions(LxWxH) | 1900x1800x2200mm |
Features
1. It can be used for fixed amount small package filling,straight line type filling,mechamcal,electric,apparatus control of all sorts of viscous and nonviscous,erosive liquid,such as plant oil chemlcal,liquid,daily chemical industry.
2. It is rather simple and rapid to change items,the design is quite distinct,the property is Very advantageous,its appearance corresponds to international concept for mechanlcal equlpment.
3. It has applied SIEMENS PLC computerlzed control,from germany. It has intellectual,protection function.
4. Vacuum drop prevention device guarantees there Should be absolutely no drop or leakage during production.
5. It works stably, fills precisely, and suits for cold and hot filling. The piston and piston barrel after the treatment of top technology cooperate accurately, durable and wearable.
6. It is equipped with material stirring system, three point liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and no filling without bottles.
7. It adopts good stainless steel material, which meet the requirement of food sanitation.
8. Vacuum pump can make sure there is no dripping oil on bottle body or machine surface, keep the bottle and machine clean.
Final products
| SERVICE |
| One year warranty for the whole system. |
| Free equipment installation and debugging. |
| After one year, we can help you to maintain the machine and the accessories are provided only one the cost price |
| We can provide internship service and help you train the operator and mechanic. |
| Free beverage production technology and process configuration. |
| We can help you to design the product line, workshop and provide turn-key project. |
