3000BPH 3.68kw Auto Oil Filling Machine Accurate Speed Regulation

3000BPH 3.68kw Auto Oil Filling Machine Accurate Speed Regulation
3000BPH 3.68kw Auto Oil Filling Machine Accurate Speed Regulation 3000BPH 3.68kw Auto Oil Filling Machine Accurate Speed Regulation 3000BPH 3.68kw Auto Oil Filling Machine Accurate Speed Regulation

Large Image :  3000BPH 3.68kw Auto Oil Filling Machine Accurate Speed Regulation

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGF16-16-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping,Standard wooden boxes packaging
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Capacity: 3000BPH Filling Type: Weighing Type
Filling Material: Oil,Sauce,Vinegar,fruit&vegetable Paste Function: Washing,Filling ,capping
Warranty: One Year For Free Power: 3.68kw
Weight: 5500kg Overall Dimensions (LxWxH): 3250X2200X2300mm
High Light:

3000BPH Auto Oil Filling Machine

,

3.68kw Auto Oil Filling Machine

,

3.68kw oil bottling machine

Vegetable Oil Bottle Filling Machine . Automatic Oil Filling Machine Weighing Type





Description:

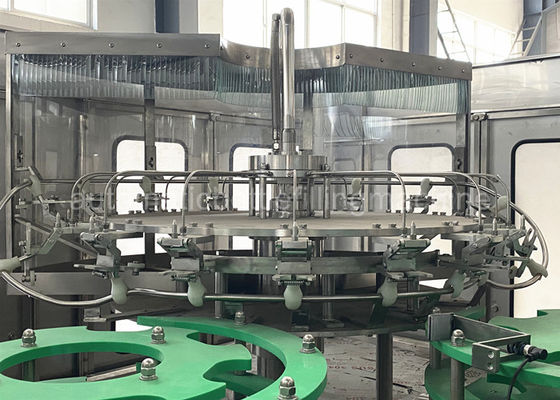

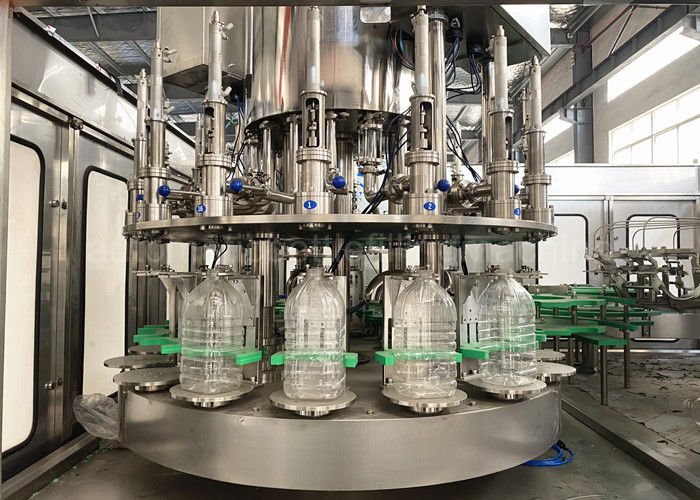

This machine is a new type of gas Rinsing,filling,capping 3 in 1 machine designed and manufactured with foreign advanced technology. The filling valve is manufactured by the imported metering valve technology, with high manufacturing accuracy, accurate filling liquid level, small liquid loss and good stability, which is especially suitable for oil filling; the screw cap system is manufactured by the imported French company technology, with magnetic screw cap, adjustable torque, and equipped with synchronous cover removal screw cap device, with small cover loss.





Features:

  • Accurate speed regulation: advanced motor frequency regulation control technology is adopted to make the speed regulation of the machine in starting and production accurate and stable, and the digital display of filling speed. The whole machine is controlled by PC program with high degree of automation.
  • Structural hygiene: all parts in contact with beverages are made of high-quality stainless steel, all liquid and gas pipes are made of internal and external polishing pipes, and all sealing rings in contact with beverages are made of NBR or silicone rubber for food, meeting the hygiene requirements.

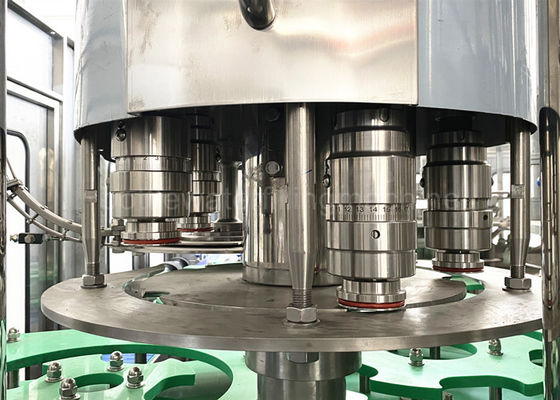

  • The structure of the capping machine is advanced: the capping head adopts magnetic screwing cap, which can adjust the required torque according to different bottle caps, and is suitable for various types of plastic caps; the selective cap adopts tooth shaped device, and the slide way of the lower cap is equipped with a cap detection device, so as to ensure that there is no reverse cap and no bottle does not send the cap.
  • Quick and convenient change of bottle type: all the changed parts are of quick opening structure, which is suitable for PET bottles of various specifications.



Technical parameter:

Model YGF16-16-5
Capacity 2000-3000BPH
Bottle size 950ml,2400ml
Rinsing head 16
Filling head 16
Capping head 5
Filling temperature 18-20℃
Gas pressure of rinsing bottle 0.15~0.25 MPa
Compressed air: 0.5~0.6Mpa
Speed control AC MOTOR+REDUCER+INVERTER
Power 3.68Kw
Weight 5500 Kg
Overall dimensions(L*W*H) 3250mmX2200mmX2300mm
