| Filling Type: | Piston Volumetric Filling,rotary Type | Filling Accuracy: | ≦0.5% |
|---|---|---|---|
| Function: | Filling ,sealing 2-in-1 Unit | Power: | 2.2kw |
| Application: | Beverage, Food | Overall Dimensions (LxWxH): | 1900x1800x2200mm |
| Weight: | 2000kg | Filling Material: | Oil,vinegar,soy Sauce,paste |
| High Light: | 3000BPH olive oil bottling machine,quantitative filling olive oil bottling machine,quantitative filling oil bottling machine |
||
Specifations

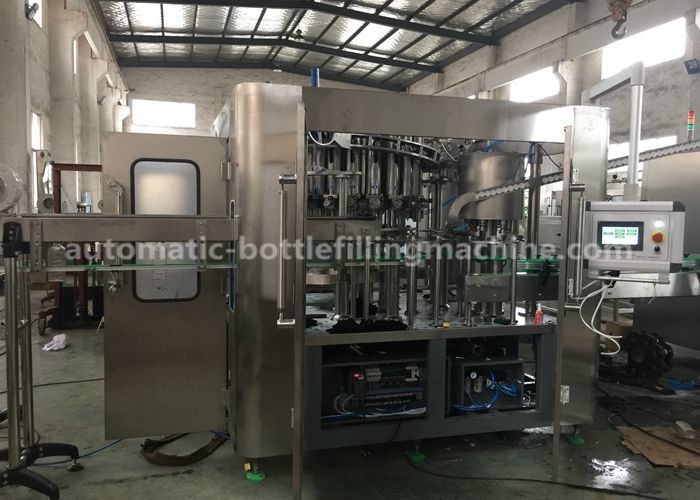

1. YGF18-6 oil filling /capping 2in1 machine is capable for bottle volumes from 250ml to 2000ml.
2. It is with liquid crystal display, precise quantitative filling volume, and no leakage. There is overload
clutch protection device at the star wheels of bottle in-feed and out-feed, so the machine will automatically
stop and alarm if abnormal case happens.
3. It works stably, fills precisely, and suits for cold and hot filling.it is a high efficient and high intellectual oil
filling and capping machine.
Features
PET BOTTLE OIL FILLING AND CAPPING 2 IN 1 MONOBLOCK, PISTON VOLUMETRIC FILLING,
ROTARY TYPE
The piston and piston barrel after the treatment of top technology cooperate accurately, durable and
wearable. It is equipped with material stirring system, three point liquid level control, frequency conversion
adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and no filling
without bottles. It adopts good stainless steel material, which meet the requirement of food sanitation.
Vacuum pump can make sure there is no dripping oil on bottle body or machine surface, keep the bottle
and machine clean.
Note:
1) Our filling accuracy ≦0.5%;
2) The filling part is cover with organic glass;
3) the machine whole part is food grade, we adopt 304SUS.
4) We adopt stepless speed changing motor.
Technical parameter
| Model | YGF18-6 |
| Capacity/1L BOTTLE | 3000BPH |
| Filling head | 18 |
| Capping head | 6 |
| Filling time | 5 second(approx)(100ml/min) |
| Filling temperature | 18-20℃ |
| Filling tank | Semi closed type filling tank, using worm gear to adjust the height |
| Filling valve | Using cam to force down |
| Speed control | AC MOTOR+REDUCER+INVERTER |
| Gas consumption | 100NL/min(5-6Kg/cm²)(take 100EA as the base) |
| Power | 2.2Kw |
| Weight | 2000 Kg |
|
Overall dimensions(LxWxH) |
1900x1800x2200mm |
Note: the filling range and speed can be designed according to user needs to design
different filling head number.
COMPONENTS BRAND LIST
| 1 | PLC | Siemens, Germany |
| 2 | Frequency converter | Siemens, Germany |
| 3 | Contactor | Schneider |
| 4 | Circuit breaker | Schneider |
| 5 | Touch screen | Siemens, Germany |
| 6 | Buzzer | Schneider |
