Litchi / Soymilk Juice Bottle Filling Machine Electric Driven Bottle Diameter 40 - 80mm

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Litchi / Soymilk Juice Bottle Filling Machine Electric Driven Bottle Diameter 40 - 80mm

Litchi / Soymilk Juice Bottle Filling Machine Electric Driven Bottle Diameter 40 - 80mm
Litchi / Soymilk Juice Bottle Filling Machine Electric Driven Bottle Diameter 40 - 80mm

Large Image :  Litchi / Soymilk Juice Bottle Filling Machine Electric Driven Bottle Diameter 40 - 80mm

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: 8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T,
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Bottle Material: HDPE / PET Bottle After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: One Year For Free Capacity: 3000BPH
Overall Dimension(L*W*H): 1600*1500*2200mm Material: Food Grade Stainless Steel
Function: Washing Filling Aluminum Foil Sealing Driven Type: Electric
High Light:

fruit juice production line

,

small scale juice bottling equipment





Litchi Juice / Soymilk Filling Aluminum Foil Sealing Machine With





HDPE Bottle





This machine is customized for our client from Shanghai!


Specification:

1. It can be used for filling milk, lactate milk,soymilk, juice etc into plastic/pet/HDPE bottle


2. It has an Aluminum foil making machine to produce the aluminum foil to sealing the bottle.

3. Food grade stainless steel 304




Primary features:

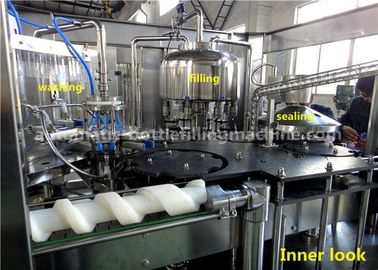

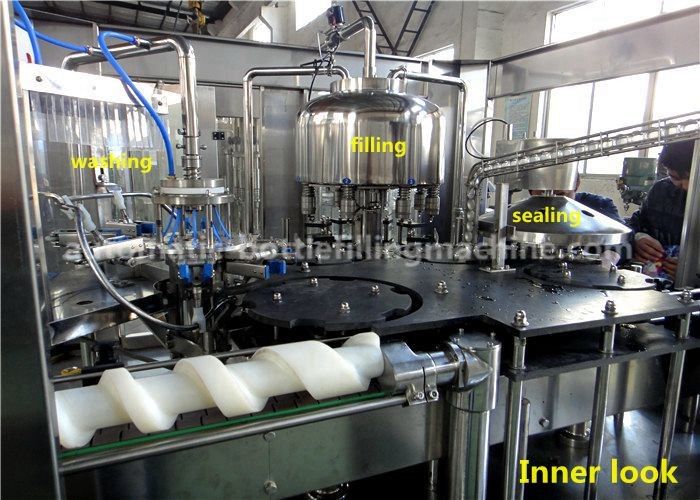

   The machine combines washing unit, filling unit, capping unit in one machine, it can fulfill the washing,

filling capping automatically, Bottles are fed into the washing machine in order by conveyor, then the

bottles are turned over and washed inside by the nozzles. After dripping in line, bottles will be fed to the

filling machine automatically to fill liquid with high speed and fixed quantity. After that, the filled bottles will

be capped by the automatic capping machine and then be transported to the labeling and packing

process,


   The machine adopt micro negative pressure filling, the filling operation is faster and liquid level is

precise and accurate,


   The machine use advanced technology and design from Italy and Germany, The appearance is

beautiful and design of machine is scientific, its operation and maintenance is convenient, with high

automation.




Technical parameter


Model8-8-3
Production capacity(500ml)(b/h)2000-4000
Filling precision≤±5MM(Liquid Level)
Polyester bottle standard(mm)Bottle diameter40-80
Height(mm)Height:130-280
Suitable cap shapePlastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18

Water consumption for Water bottle (kg/h)800
Spraying position5
Dripping bottle position3
Gas source pressure(Mpa)

normal pressure

Gas consumption(m3/mm)0.3
Total power(kw)3
Total weight(kg)1500
Dimension(L*W*H)1600*1500*2200mm


The final drink this machine can produce

Litchi / Soymilk Juice Bottle Filling Machine Electric Driven Bottle Diameter 40 - 80mm 0

Our Services

The sample service

1. We can send you the video of the running machine.

2. You are welcome to come to visit our company to see the machine running in our factory,we can pick

you up from the station near our city.

3. If we get the permission of our customer,we can tell you our old customer contact imformation.

Customized service

1. We can design the machines according your requirements (materil ,power,filling type,bottles, and so

on),at the same time we will give you our professional suggestion,as you know,we have been in this

industry for many years.

2. We offer free technical support and consultation,such as draw the factory layout for you, alalyze the

source water report and so on.

After-sales service

1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine

quickly.

2. When you finish the Preparation conditions ,our fast and professional after service engineer teamwill go

to your factory to install the machine,give you the operating manual ,and train your employee until they

can operate the machine well.

3. We provide one year warranty with spare parts free.

4. We ask the feedback from our customer and offer some help when the machine have been used for

some time.
