18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment

18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment
18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment

Large Image :  18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment

Product Details:
Place of Origin: CHINA (MAINLAND)
Brand Name: JINYATE
Certification: CE SGS
Model Number: RCGF18-18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film, standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Name: Juice Drink Bottling Machine Function: Bottle Sterilizing Washing Filling Capping
Suitable Bottle: PET, Plastic Bottle Bottle Size: 150ml-2000ml
Filling Material: Various Juice, Tea, Coffee Other No-gas Beverage Filling Type: Hot Filling
Control: PLC+Touch Screen Capacity: 6000 Bottles Per Hour
Material: SUS304/316 Electrical Power: 380V, 50HZ,3 Phrases Or Customized
Warranty: 1 Year
High Light:

juice bottling machine

,

small scale juice bottling equipment

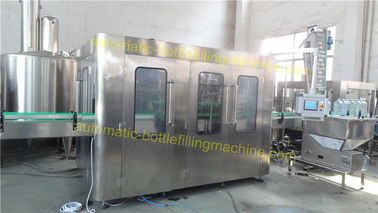

Description



This machine integrates sterilizing,washing ,filling and capping four functions in



one body,total process is automatic, and it is suitable for high temperature resistant



PET bottled juice and tea drink filling,it's capacity is 6000BPH. it applies advanced



micro-pressure gravity type filling principle, with perfect re-circulation system,without



contacting with material, avoid secondary pollution and oxidation. It is made of high



quality SUS304 stainless steel,the material of parts inside of the filling valve must



be SUS316 . Main components are processed precisely by CNC machine tools.



The machine adopts advanced photo electricity to detect running status. No bottle



no filling. It is possible to realize man-machine conversation because of applying



touch screen for operation.



Technical parameter



Model RCGF18-18-18-6
Production capacity (500ml) 6000BPH
Suitable beverage juice, tea, coffee, milk etc
suitable bottle PE bottle
bottle size 150ml-2000ml
suitable cap plastice screw cap
power supply 380v 50hz 3phrases



Constituent parts

1. air conveyor

2. cap loader

3. cap sterilizer

4. sterilizing parts

5. rising parts

6. filling parts

7. capping parts

8. electrical control system




products details

air conveyor

Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed

because of adopting hanging clamping bottleneck way.

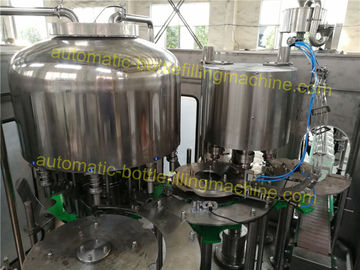

cap loader and sterilizer

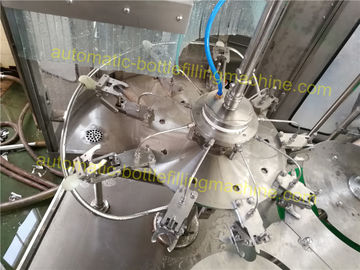

inner look


Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting



clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change



the board related with bottle diameter.Filling adopts cylinder feeding structure, filling valve adopts high



filling speed and mass flow rate valve which control liquids level accurately and without loss.


The capping system applies advanced French technology, when clamp the cap will screw immediately and



magnetic torque type capping head.


Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor



chains.



18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 0
18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 1
18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 2

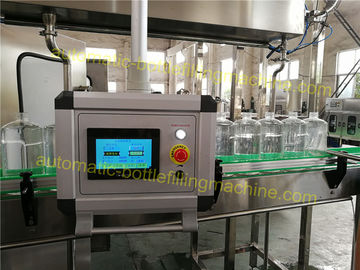

control system

Main PLC and frequency changer are used famous brand, such as Mitsubishi and Omron etc.

we can produce the machines to make the below beverage:



about our company


Zhangjiagang Jinyate Machinery Co., Ltd. is located in Zhangjiagang city, which is near to



Shanghai. We are an industry leader in beverage filling &package machine, we can help provide



a customized design to meet your demands. Our expertise in the follong categories will bring your



ideas to your customers.



1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);



2. barrel mineral/ pure water production line (3L,5L,10L,19L,)



3. bottling carbonated beverage production line (like coca cola);



4. bottling juice production line;



5. canning beverage production line;



6. glass bottle beverage production line;



7. carbonated beverage and juice production auxiliary plants



With the comprehensive understandeing in various ranges of beverage products and long-time



experience in import-export sector, with our profession, enthusiastic determined team, we are



proud to say that we have been shipping many order to the USA, Germany, Austrilia, India, Africa,



Malaysia, Russia..., our good quality and service win us worldwide old customeres.



18 Rising Heads Fruit Juice Production Line , 150ml - 2000ml Hot Fill Bottling Equipment 3



furthur learn, we will provide you more helpful information...
