Edible Oil Filling Packing Machine , Oil Bottling Machine / Equipment

Description:

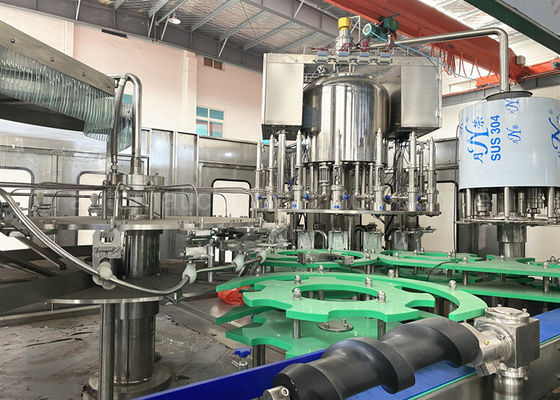

This machine is a new type of gas Rinsing,filling,capping 3 in 1 machine designed and manufactured with foreign advanced technology. The filling valve is manufactured by the imported metering valve technology, with high manufacturing accuracy, accurate filling liquid level, small liquid loss and good stability, which is especially suitable for oil filling; the screw cap system is manufactured by the imported French company technology, with magnetic screw cap, adjustable torque, and equipped with synchronous cover removal screw cap device, with small cover loss.

Main performance:

1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way

2) Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth, when bottle type changes, you need to change the board related with bottle diameter

3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.

4) Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.

5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on

Technical parameter:

Features:

• Accurate speed regulation: advanced motor frequency regulation control technology is adopted to make the speed regulation of the machine in starting and production accurate and stable, and the digital display of filling speed. The whole machine is controlled by PC program with high degree of automation.
• Structural hygiene: all parts in contact with beverages are made of high-quality stainless steel, all liquid and gas pipes are made of internal and external polishing pipes, and all sealing rings in contact with beverages are made of NBR or silicone rubber for food, meeting the hygiene requirements.
• The structure of the capping machine is advanced: the capping head adopts magnetic screwing cap, which can adjust the required torque according to different bottle caps, and is suitable for various types of plastic caps; the selective cap adopts tooth shaped device, and the slide way of the lower cap is equipped with a cap detection device, so as to ensure that there is no reverse cap and no bottle does not send the cap.
• Quick and convenient change of bottle type: all the changed parts are of quick opening structure, which is suitable for PET bottles of various specifications.
