Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling

Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling
Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling

Large Image :  Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film, standard wooden cases
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 90 sets per year
Detailed Product Description
Product Name: Water Filling Machine Machine Type: Monobloc
Function: Rising Fillig Capping Model: CGF8-8-3
Capacity: 3000 Bottles Per Hour Suitable Bottle: PET Plastic Bottle
Bottle Size: 200-1000ml Suitable Cap: Plastic Screw Cap
Voltage: 380v 50hz 3phase Or Customized Control: PLC+Touch Screen
High Light:

automatic bottling machine

,

automatic bottle filling system



Automatic Small Mineral Water Pet Bottle Filling Capping And Labeling



Machine





product description



this is our smallest monobloc, it integrates rising filling capping three functions in



one unit, it has 8 rising heads, 8 filling heads, 3 capping heads, can fill 3000 bottles



per hour, it's a ideal equipment for small scale production.


 This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester



bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage



machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the



process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch



time, improve the sanitary conditions, production capacity and economic efficiency.

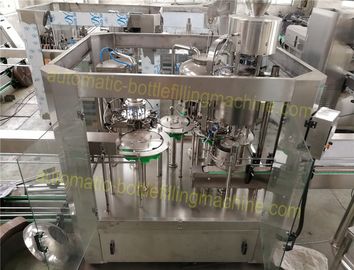

Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling 0



Working principle:


The machine is based on the 13 KW electric motor as the main drive,the



worm gear reducer with motor drags the triangle belt rotation, pick the bottles,wash bottles, as the



bottles read then done filling,after that the capping rotation system will done.





1. Transmission system: bottle will be sent to the 3 in 1 macnine by local blower,then an electric



conveyer takes over. the defective bottle can be took off from the tail gate also the user can



replace the different size bottle by that.




2. Washing system: the holder will catch the bottle and turn 180 degrees in order to spray



medium into bottle to finish a flush program in order to ensure bottle clean. Also in accordance



with the requirements of local users on the realization of disinfectant, the system will flush the



bottle secondly to improve the product.




3. Filling system: the main components includes feeding tanks, piping, filling valve, filling



head,gear,motor and control system.the control system is the main brain of the machine,it



controls filling,motor,conveyor etc,the medium comes from tank goes to filling valves through



piping,filling head connect with bottle then valve open,medium fills the bottle.





4. capping system:The capping system is controlled by PLC,when bottle in place it cappings



immediately.





5. Electrical system: mainly imports electrical components configure our machines,such as



Frequency converter, PLC system,proximity switch and so on.



Washing Part



1). The rotary disk is fully made of SUS304 stainless steel.



2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional



bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is



made of SUS304 stainless steel, health and durable.



3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular



angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.



4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant



bearing without maintenance.



5). Washing part moves by a frame in the transmission system through the gear transmission.

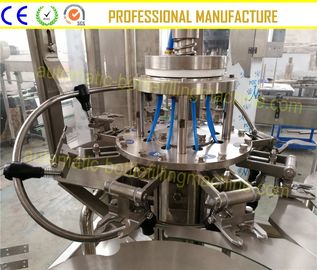

Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling 1



Filling part



1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.



2). The rotating disk is all made of SUS304 stainless.



3). Filling method is gravity filling.



4). Filling valve manufactured by SUS304.



5). The filling valve structure design is reasonable, the filling quantity is accurate.

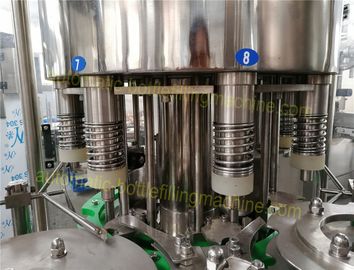

Monoblock Type Automatic Bottle Filling Machine 3000 Bottles Per Hour For Capping / Labeling 2



we also have other capacity



Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-15
Number of rising heads 16 18 24 32 40 50
Number of filling heads 12 18 24 32 40 50
Number of capping heads 6 6 8 10 12 15
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml) 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH
Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12



welcome you have a furthur learn,we will provide you more



information, it's helpful to learn this machine's market price... ...
