Distilled / Mineral Pet Bottle Filling Machine 5 Spraying Positions Normal Pressure Filling

Distilled / Mineral Pet Bottle Filling Machine 5 Spraying Positions Normal Pressure Filling
Distilled / Mineral Pet Bottle Filling Machine 5 Spraying Positions Normal Pressure Filling

Large Image :  Distilled / Mineral Pet Bottle Filling Machine 5 Spraying Positions Normal Pressure Filling

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Bottle Type: PET Bottle Bottle Volume: 200ml-2L(adjustable)
Overall Dimension(L*W*H): 2450*1800*2200mm Capacity: 6000BPH(500ml)
Warranty: One Year Filling Type: Normal Pressure Filling
Control System: PLC Control Automatic Grade: Fully-automatic
High Light:

mineral water filling machine

,

liquid filling machine



3500kg Distilled / Mineral Water Pet Bottle Filling Machine Beverage



Plant



Introduction



CGF18-18-6 unit is a new machine independently developed by the Company on the basis of



years’experience in washing-filling-capping 3-in-1 unit,suggestions of various users and reference to



overseas advanced technologies.It conforms to the requirement that the user can fill bottles of different



types on one machine,and since it is designed to cramp bottle neck in a suspended manner,bottle



replacement is easy and quick.This unit mainly applies to wash,fill and cap the bottle containing still



beverage (e.g.purified water,mineral water).



Washing part



1) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from



Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing



water



2) Covering of bottle clamps and elevator are product of IGUS



3) The rinse is driven by driving system positioned inside machine frame via gear transmission.



Filling part



1) The filler is designed and manufactured with application of Italy technology, providing



hardware guarantee for securing product quality and reducing loss.



2) Rotary wheel are fully made of stainless steel AISI304.



3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring



high filling accuracy and high filling speed.



Capping part



1) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover



lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.



2) Highly effective acentric way for cap sorting to reduce the abrasion.



3) It has the check-up device to control the cover lift.

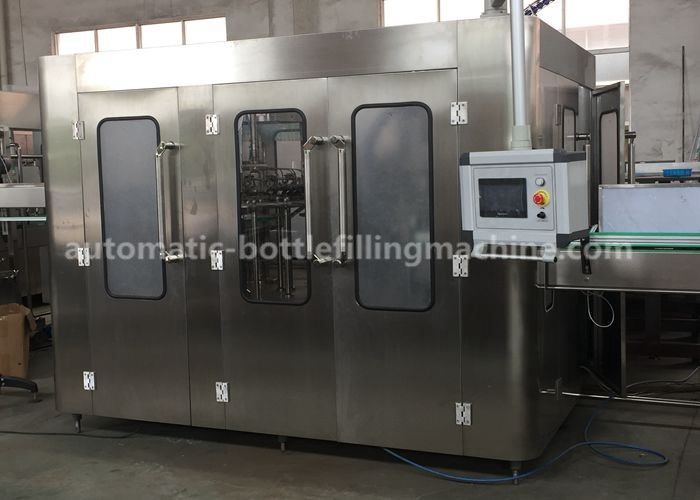

Distilled / Mineral Pet Bottle Filling Machine 5 Spraying Positions Normal Pressure Filling 0



Technical parameter



Model CGF18-18-6
Production capacity(500ml)(b/h) 4000-6000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80
Height(mm) Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18

Water consumption for Water bottle (kg/h) 1600
Spraying position 5
Dripping bottle position 3
Gas source pressure(Mpa)

normal pressure

Gas consumption(m3/mm) 0.3
Total power(kw) 5.03
Total weight(kg) 3500
Dimension(L*W*H) 2450×1800×2200
