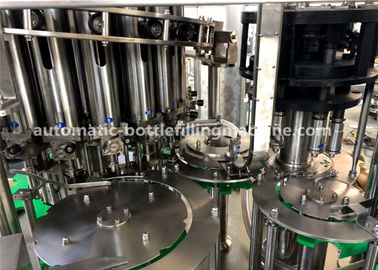

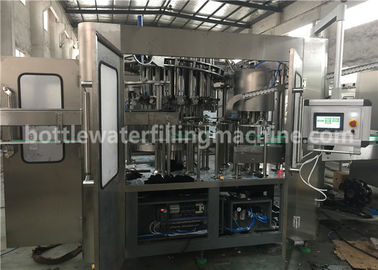

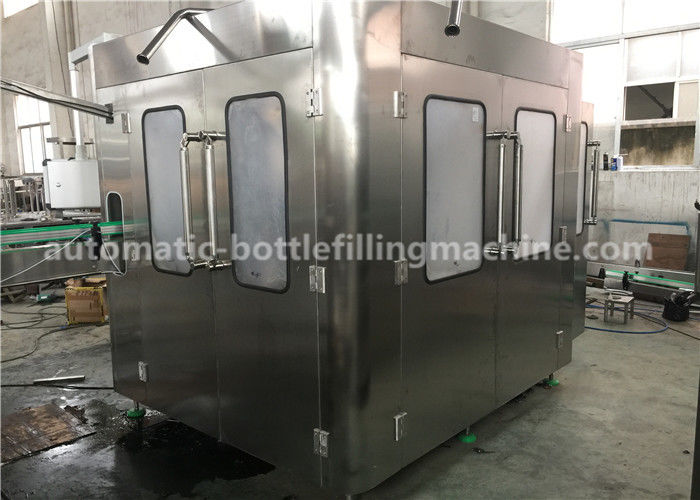

SS304 200ml Piston Pump Vegetable Coconut Auto Oil Filling Machine

SS304 200ml Piston Pump Vegetable Coconut Auto Oil Filling Machine
SS304 200ml Piston Pump Vegetable Coconut Auto Oil Filling Machine SS304 200ml Piston Pump Vegetable Coconut Auto Oil Filling Machine SS304 200ml Piston Pump Vegetable Coconut Auto Oil Filling Machine

Large Image :  SS304 200ml Piston Pump Vegetable Coconut Auto Oil Filling Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGF18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping,Standard wooden boxes packaging
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Capacity: 3000BPH Filling Material: Oil,Sauce,Vinegar,fruit&vegetable Paste
Structure: 2-in-1 Monoblock Power: 2.2kw
Weight: 2000kg Overall Dimensions (LxWxH): 1900x1800x2200mm
Driven Type: Electric+pneumatic Bottle Volume: 200ml-2L
High Light:

SS304 vegetable oil filling machine

,

SS304 piston pump filling machine

,

200ml coconut oil filling machine

SS304 750ml Bottle Cooking / Vegetable / Edible Oil Filling And Capping Machine



1. Can connect with bottle feeding table, capping and labeling machine,effective cost / space saving.
2. It has intuitive and convenient operation, measuring accurate, positioning precision.
3. Fully in accordance with the GMP standard production and passed CE certification.
4. Siemens Touch screen/PLC+anti explosion pump+Servo motor control.
5. No bottle no filling.



Specifations



  This 2-in-1 Rotary type,Piston volumetric oil filling machie has 18 filling heads and 6 capping heads, is suitable for filling edible oil,olive oil,motor oil,lubricant,gear oil,engine oil,all kinds of flowing liquid and it can also fill ketchup,jam,fruit&vegetable paste,honey,corn soup,peanut paste,sauce,so on. it can fill different shapes of bottle such as round,flat,square,etc, the volume can be 200ml-2L By adjusting the position pump,it can fill many kinds of the bottles in one filling machine with quick speed and high precision.The filling capacity and volume can be adjustable





Features



1. Adopt top liquid hopper,with auto level sensor to control stuff supply and stop.

2. The filling nozzles are specialized made:anti-drop.

3. Convenient to take out component parts to clean and sterilize, easy to change different bottles without changing parts.

4. Be able to be equipped with other automatic packaging machine.

5. Whole machine designed and manufactured according to GMP Standard.

6. The parts which contacts liquid are SUS316L stainless steel and others are SUS304 stainless steel.

7. Most commonly applicable for pharmaceutics,daily chemicals,foodstuffs,cosmetics,pesticides and otherindustrial.

8. It is rather simple and rapid to change items,the design is quite distinct,the property is Ver advantageous,its appearance corresponds to international concept for mechanlcal equlpment.

9. It has applied SIEMENS PLC computerlzed control,from germany. It has intellectual,protection function.

10. Vacuum drop prevention device guarantees there Should be absolutely no drop or leakage during production.

11. It works stably, fills precisely, and suits for cold and hot filling. The piston and piston barrel after the treatment of top technology cooperate accurately, durable and wearable.

12. It is equipped with material stirring system, three point liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and no filling without bottles.





Technical parameter



Model YGF18-6
Capacity/1L BOTTLE 3000BPH
Filling head 18
Capping head 6
Filling time 5 second(approx)(100ml/min)
Filling temperature 18-20℃
Filling tank Semi closed type filling tank, using worm gear to adjust the height
Filling valve Using cam to force down
Speed control AC MOTOR+REDUCER+INVERTER
Gas consumption 100NL/min(5-6Kg/cm²)(take 100EA as the base)
Power 2.2Kw
Weight 2000 Kg

Overall dimensions(LxWxH)

1900x1800x2200mm
