| Capacity: | 5000BPH | Filling Type: | Piston Volumetric Filling,rotary Type |
|---|---|---|---|
| Machine Structure: | 2-in-1 Monoblock | Function: | Bottle Filling ,sealing |
| Driven Type: | Electric | Power: | 3.5kw |
| Application: | Beverage, Food,Commodity | Overall Dimensions (LxWxH): | 2200x1800x2200mm |
| High Light: | oil bottling equipment,motor oil filling machine |
||
Brief introduction

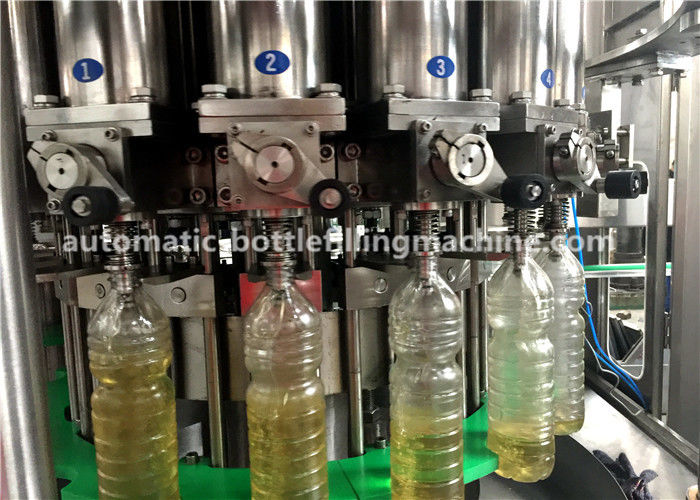

1. This seris filling machine are perfectly designed for high capacity edible oil ( food oil, cooking oil ) filling & sealing
2. Suitable to fill into pet bottle with volume 500ml to 5000ml, and suitable to the screw caps or press caps sealing
3. Monobloc Design, Full-automatic working, easy operate
4. Adopts high precision and high speed ration filling valve make sure the oil level is exact without loss, ensuring high quality filling perfectly. No drips filling
5. Filling volume adjustable, no bottle no filling, no bottle no capping design
If you want to know how this oil filling machine works,just click here
https://www.youtube.com/watch?v=yGhNXFRf_oM&feature=share
Usage of this machine
Automatic cooking oil filling machine is suitable for filling paste or oil product, such as ketchup, jam,
fruit and vegetable paste, cooking oil, honey, corn soup, peanut paste, sauce. It also can be used for
pulp, edible bird's nest, aloe, rice wine and so on.
Advantages of our oil filling machine
1. The world famous brands of electrical and pneumatic components, low failure rate,long service life.
2. Automatic cooking oil filling machine works stably, fills precisely, and suits for cold and hot filling.
3. The piston and piston barrel after the treatment of top technology cooperate accurately, durable and
wearable.
4. It is equipped with material stirring system, three point liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and no filling without bottles.
5. It adopts good stainless steel material, which meet the requirement of food sanitation.
6. Vacuum pump can make sure there is no dripping oil on bottle body or machine surface,keep the bottle and machine clean.
Technical parameter
| Model | YGF24-8 |
| Capacity/1L BOTTLE | 5000BPH |
| Filling head | 24 |
| Capping head | 8 |
| Filling time | 5 second(approx)(100ml/min) |
| Filling temperature | 18-20℃ |
| Filling tank | Semi closed type filling tank, using worm gear to adjust the height |
| Filling valve | Using cam to force down |
| Speed control | AC MOTOR+REDUCER+INVERTER |
| Gas consumption | 100NL/min(5-6Kg/cm²)(take 100EA as the base) |
| Power | 3.5Kw |
| Weight | 2500 Kg |
|
Overall dimensions(LxWxH) |
2200x1800x2200mm |
Note: the filling range and speed can be designed according to user needs to design
different filling head number.
RAQ
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for many years,can give u best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:30-45 days after the T/T deposit or L/C.
Q6:What's min order quantity?
A6:1 unit
