500ml Balanced Pressure Automatic Bottle Filling Machine PLC Control

500ml Balanced Pressure Automatic Bottle Filling Machine PLC Control
500ml Balanced Pressure Automatic Bottle Filling Machine PLC Control

Large Image :  500ml Balanced Pressure Automatic Bottle Filling Machine PLC Control

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF24-24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Warranty: One Year For Free Control System: PLC+touch Screen
Atumatic Grade: Fully-automatic Power: 7.57kw
Bottle Type: Glass Bottle Cap Type: Aluminum Screw Cap
Weight: 5500kg Dimension(L*W*H): 3250*2180*2200mm
High Light:

Balanced Pressure Automatic Bottle Filling Machine


500ml Automatic Bottle Filling Machine


500ml Balanced Pressure Bottle Filling Machine

Balanced Pressure Carbonated Soft Drink Filling Machine , Auto Bottle Filling Machine 7.57KW



Balanced Pressure Filling Carbonated Drink Production Line 200-2000ml Bottle Volume

DGCF series rinser-rinser-filler-capper, which perfectly combines bottle rinsing machine, filling machine and capping machine together in one unit, is an high efficient liquid packing machine designed for packing both carbonated drinks and non-carbonated drinks such as juice and water.


Glass bottle four-in-one machine

Applicable products: high-end aerated mineral water, aerated soda water, cola, sprite, aerated juice

Capacity: 6000-8000 bottles/hour

Filling principle: balanced pressure filling

Applicable bottle type: 200ml-2000ml

Filling valve: According to customer needs, use equal pressure mechanical valve/imported flow meter valve

Technical parameter

Model DGCF24-24-24-8
Production capacity(500ml)(b/h) 6000-8000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Aluminum Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) balanced pressure
Gas consumption(m3/mm) 0.4
Total power 7.57
Total weight 5500
Dimension(L*W*H) 3250*2180*2200mm

Machine introduction :

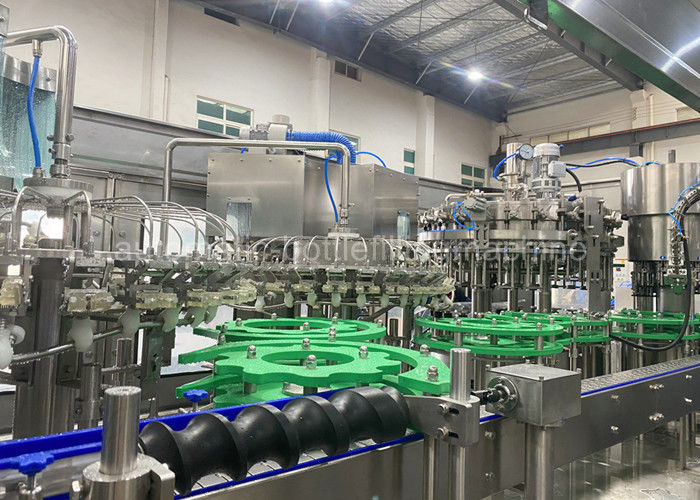

Jinyate carbonated drink filling machine, integrating with washing, filling and capping part, it realizes full-automation in the whole process, suitable for polyester bottle and plastic bottle filling of carbonate beverage,like: soda, cola and so on.
The bottle types applicable for various parts are easily,conveniently and rapidly adjustable.It adopts new isobaric pressure filling. Compared with the machines of the same specification, the capacity of this machine is larger.Machine adopts advanced Mitsubishi programmable logic controller (PLC) to control.
The input bottle adopts air conveying device, the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.

Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine

304 stainless steel washing pumps
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

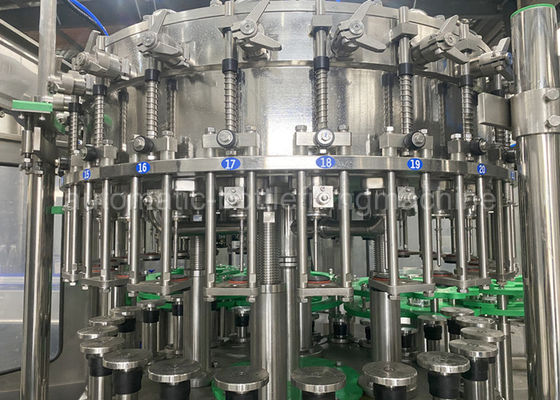

High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling

capper station

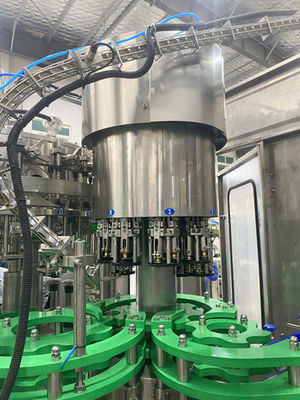

Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle
