500ml 6000BPH Volumetric PET Automatic Bottle Filling Machine

China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

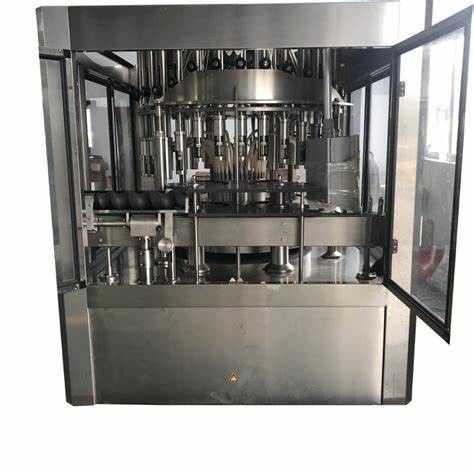

500ml 6000BPH Volumetric PET Automatic Bottle Filling Machine

500ml 6000BPH Volumetric PET Automatic Bottle Filling Machine
500ml 6000BPH Volumetric PET Automatic Bottle Filling Machine

Large Image :  500ml 6000BPH Volumetric PET Automatic Bottle Filling Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Filling Volume: 250-1500ml Bottle Type: PVC/PET Plastic Bottle
Overall Dimension(L*W*H): 2450*1800*2200mm Capacity: 6000BPH(500ml)
Filling Temperature: Room Temperature Control System: PLC Control+touch Screen
Automatic Grade: Fully-automatic Washing Water Consumption: ≤1T/H
High Light:

6000BPH Automatic Bottle Filling Machine


6000BPH pet Bottle Filling Machine


500ml volumetric bottle filling machine


Complete Line Automatic 500ml Bottle Water Filling Production



Machine PLC

Brief introduction
The mineral water filling machine has three functions for bottle rinsing, filling and capping, which are composed in one body of the machine . The whole process is full automatic.
This machine is used in filling mineral water, drinking water, flavor water, etc. in bottles made of polyester and plastics .
Primary structure and characteristics of equipment
1. 18 sets of bottle clamping robot for washing ,provided with inside﹠outside washing and reflow
mechanism of rotary seal;
2. 18 filling valves;
3. One set of cap sorter;
4. 6sets of full-tooth screwing head with magnetic torque;when torque exceeds the preset
magnetism,screwing head will slip automatically to ensure that cap is firmly screwed while not damaged;
5. 4sets of bottle poking safety,no filling and capping in case of no bottle ;
6. Main unit is designed with advanced VVVF control technology.
7. Gross power of motor:3.7KW
8. Water consumption :washing water≤1T/H+filling water 2-3T/H
Structure of Equipment
CGF18-18-6 three-in-one unit mainly consists of 11 external components.
1. frame
2. bottle-in﹠bottle-out device
3. cramp
4. washing device
5. filling transmission
6. filling valve
7. cap capturing device
8. cap sorter
9.cap screwing device
10.cap slide groove
11.bottle-out carrier
12.Pneumatic conveying unit

Technical parameter

Model CGF18-18-6
Production capacity(500ml)(b/h) 4000-6000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80
Height(mm) Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)


Water consumption for Water bottle (kg/h) 1600
Spraying position 5
Dripping bottle position 3
Gas source pressure(Mpa)

normal pressure

Gas consumption(m3/mm) 0.3
Total power(kw) 5.03
Total weight(kg) 3500
Dimension(L*W*H) 2450×1800×2200mm

If you want the detailed quotation including price,and the video of the
machine or complete line,please kindly leave me the following
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottlesper hour you want to produce ?
4, do you need this water filling machines only or whole water production line
