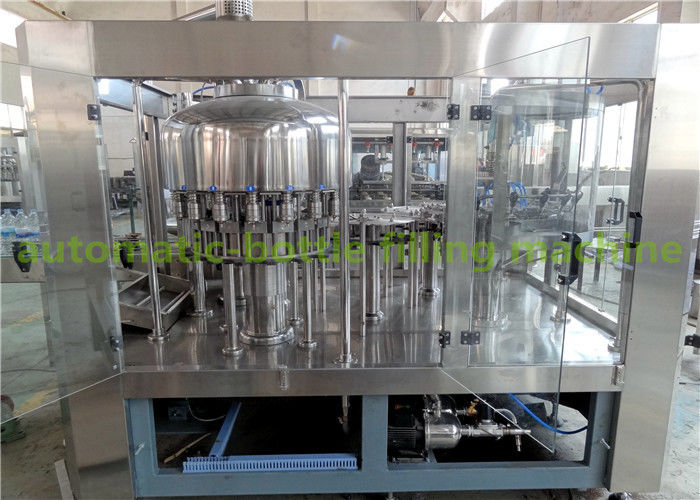

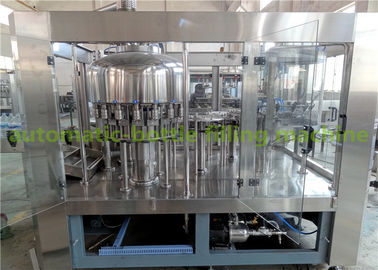

Normal Pressure 350ml 12Oz 3000BPH Automatic Bottle Filling Machine

Normal Pressure 350ml 12Oz  3000BPH Automatic Bottle Filling Machine
Normal Pressure 350ml 12Oz  3000BPH Automatic Bottle Filling Machine

Large Image :  Normal Pressure 350ml 12Oz 3000BPH Automatic Bottle Filling Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Filling Pressure: Normal Pressure Automatic Grade: Fully-automatic
Packaging Type: Bottles Overall Dimension: 1800*1200*2150mm
Power: 5.88kw Processing Type: Water
Capacity: 3000BPH (350ml) Machine Material: Stainless Steel 304
High Light:

12Oz Automatic Bottle Filling Machine

,

350ml Automatic Bottle Filling Machine

,

3000BPH automated bottle filling machine

3000BPH Automatic Pure Water Filling Machine / Bottling Plant With







Glass Bottle





Features



1. This drinking water filling equipment adopts bottle neck holding transmission technology to realize full  automatic rinsing,filling and capping.

2. All the electrical elements use international famous brand products.

3. The parts which contact with the beverage are made of high quality stainless steel SUS304.

4. It adopts human-machine interface touch-screen and PLC program control.

5. It has automatic trouble protected decice.

6. Our machine have the advantage of durable using,high stability,low failure,etc.

7. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

8. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

9. Super-low star wheel structure can highly improve the strength of the whole machine.

10. Central greasing oil system can grease all bearings easily.

11. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.

12. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.



Technique parameter

Model CGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V





Rinsing parts



Revolved type bottle washing machine,mainly used to wash bottles for mineral water and other



beverage.New bottles go into the machine through bottle dividing pole.Bottles are held by clips and



turned over onto washing heads.After washing,drain water,bottles go into filling parts by star wheel.There



is a water tray on the washing machine for water recycle.





Filling parts



Filling machiane adopts German technology,produced by ourselves,obey to normal pressure filling



principle.



Float ball control the liquid level,making filling steady.



It adopts double guide pole structure.





Capping parts



Capping machine drives revolved plate by gear.Caps go out of the cap storage by centrifugal effect.At the



cap output,there is cap divider.The sensor inspects the quantity,the machine will stop when no caps.
