5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free

China 5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free supplier
5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free supplier 5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free supplier 5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free supplier 5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free supplier 5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free supplier

Large Image :  5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Warranty: One Year For Free Control System: PLC+touch Screen
Capacity: 6000BPH(500ml) Power: 5.03kw
Bottle Type: 200-2000ml Voltage: 380V/50Hz
Weight: 3500kg Name: Pet Bottle Water Filling Machine

Basic Information for water bottling machine :



The monoblock washing , filling and capping machine offer the industry's most proven washer , filler and capper technology in one simple , integrated system . In addition they deliver the high performance today's high speed packaging lines demand .

By precisely matching the pitch between washer , filler and capper , monoblock models enhance the transfer process , reducing atmospheric exposure of filled product , eliminating deadplates, and significantly reducing feedscrew spills .



Features :



1. Intelligent contact screen, human design, easy operation.

2. Imported filling valve, avoiding drop leaking, accurate filling quantity.

3. Program logic controller(PLC), easy for changing size or modifying parameters.

4. Pneumatic elements are all imported, stability and reliability.

5. Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters

6. Solely and specially-designed whole lifting device, easy governing to meet the needs of all kindsof container packing

7. Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.

8. Pneumatic executive control valve, high efficiency and safety. Each flow passage can be separately governed and cleaned.

9. Close positioning design, easy governing, suitable for packing of all sizes of bottles.

10. The whole machine is designed according to requirements of buyer's.



Technical parameters



Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 Height:150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500
Spraying position 5 5 6
Dripping bottle position 3 3 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4
Total power 4.23 5.03 6.57
Total weight 2000 3500 5500
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200

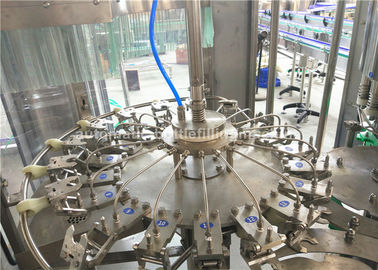

Inner look---washing filling capping

5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free

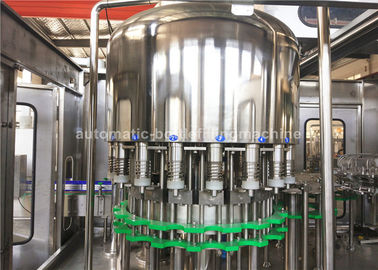

Filling

5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free



Capping
5.03KW Power Automated Pet Bottling Line For Mineral Water , One Year For Free
