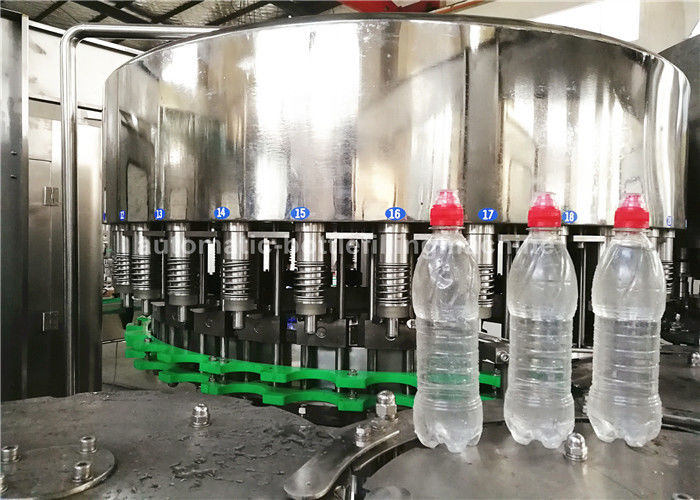

Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap

China Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap supplier
Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap supplier Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap supplier Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap supplier Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap supplier Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap supplier

Large Image :  Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Automatic Water Bottle Filling Machine Control System: PLC+touch Screen
Capacity: 12000-15000BPH(500ml) Origin: Jiangsu, China
Bottle Type: 200-2000ml Voltage: 380V/50Hz
Weight: 6000kg Condition: New



Hi,There,Look here!

Do you want a bottle water filling machine with a suction cover?

If yes,We can provide you with such a machine,Just tell us how many bottles do you want to fill per hour?

We had exported this machine to Russia,it is used for filling mineral water,pure water,drinking water,juice or tea or other non-gas contained beverage into Plastic/PET bottle.It integrates washing filling capping 3 functions into one unit.

Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantage of good abrasive resistance,high stability,low failure,etc.The quality of the equipments reaches the international advanced level.



We can also provide you with the complete water filling production line:
1. Water treatment system: Raw water pump,Quartz sand filter,Active carbona filter,Sodium ion filter,Precious filter,Reverse osmosis,Ozone generator/UV sterilizer,Water storage tank,Water pump.
2. Water bottle washing filling capping 3 in1 monoblock machine
3. End-of-line packing system: Bottle dryer,Inkjet code printer,Labeling machine,PE film packing machine



Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap

Technical parameter

Model CGF32-32-10
Production capacity(500ml)(b/h) 12000-15000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 12
Dripping bottle position 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 8.63kw
Total weight 6000kg
Dimension(L*W*H) 3500*2200*2500mm



Feature:

1. The pure water filling machine adpots advanced human-machine interface control. High quality international name brand key component

2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine

3. Spring type rinsing catcher can wash both inside and outside of the bottle

4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling

5. Magnetic powered cap device ensures tightness and prevents damage of the caps

6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage

7. Built-in safeguard mechanism ensures the safety of operator and machine.

8. High efficient air clean filter system ensures high sanitary requirements

9. Low overall machine noise

10. Self-lubricating system imported from America provides continuous smooth operation.


Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap



Rotary 3 In 1 Full Automatic Water Bottle Filling Machine Wih Suction Cap
