Product Details:
Payment & Shipping Terms:
|
Warranty: | One Year For Free | Control System: | PLC+touch Screen |
---|---|---|---|
Function: | Washing Filling Capping | Power: | 6.57kw |
Bottle Type: | 200-2000ml | Voltage: | 380V/50Hz |
Weight: | 5500kg | Dimension(L*W*H): | 2750*2180*2200mm |
High Light: | automatic bottling machine,liquid bottle filling machine |

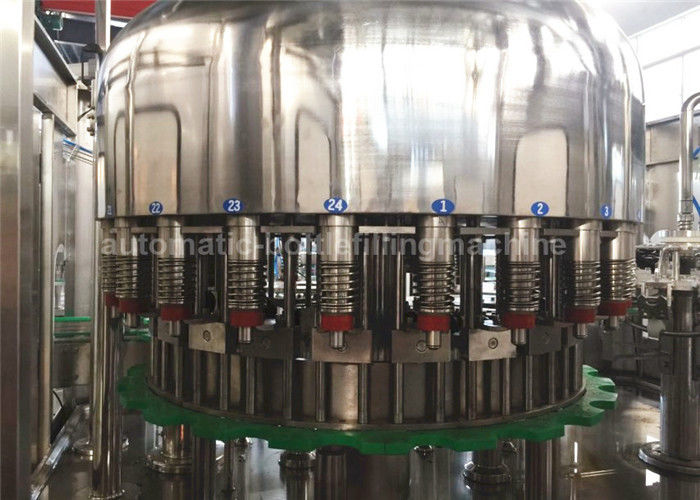

CGF24-24-8 Water bottle filling machine
It is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. It adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.Most elements of electrical system employ foreign advanced products.Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc.The quality of the equipments reaches the international advanced level.
Technical parameter
Model | CGF24-24-8 |
Production capacity(500ml)(b/h) | 8000-10000 |
Filling precision | ≤±5MM(Liquid Level) |
Polyester bottle standard(mm) | Bottle diameter40-80; |
Height | Height:130-280 |
Suitable cap shape | Plastic Screw Cap |
Water pressure of Washing bottle(MPa) | 0.18 |
Water consumption for Water bottle (kg/h) | 800 |
Spraying position | 6 |
Dripping bottle position | 3.5 |
Gas source pressure(Mpa) | normal pressure |
Gas consumption(m3/mm) | 0.4 |
Total power | 6.57 |
Total weight | 5500 |
Dimension(L*W*H) | 2750*2180*2200mm |

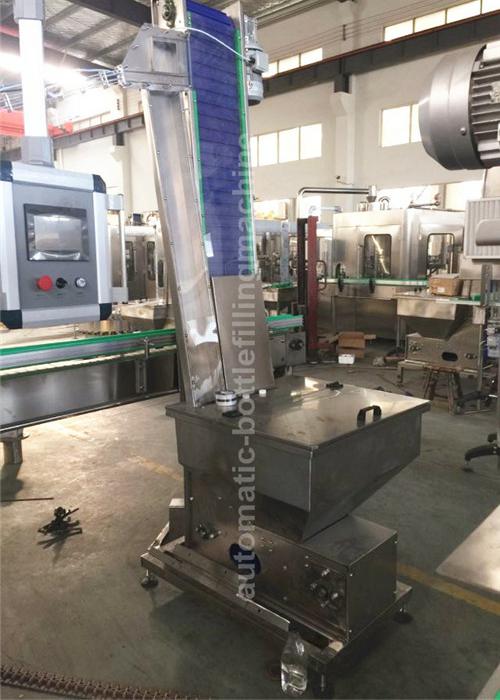

Cap elevator

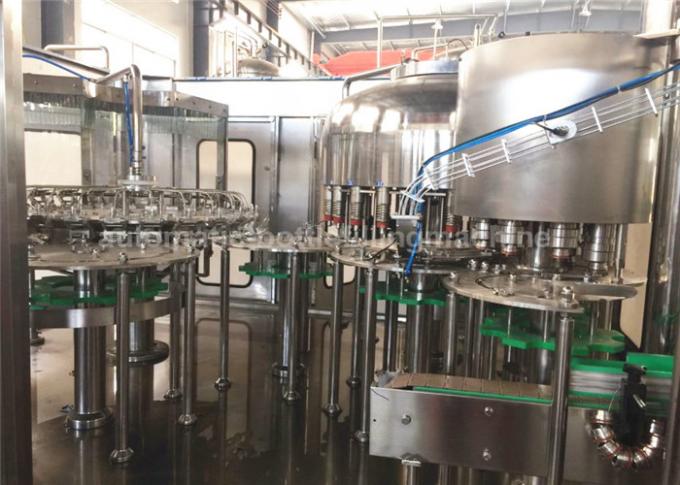

inside look
We can also provide you with the complete water filling production line:
1. Water treatment system: Raw water pump,Quartz sand filter,Active carbona filter,Sodium ion filter,Precious filter,Reverse osmosis,Ozone generator/UV sterilizer,Water storage tank,Water pump.
2. Water bottle washing filling capping 3 in1 monoblock machine
3. End-of-line packing system: Bottle dryer,Inkjet code printer,Labeling machine,PE film packing machine
