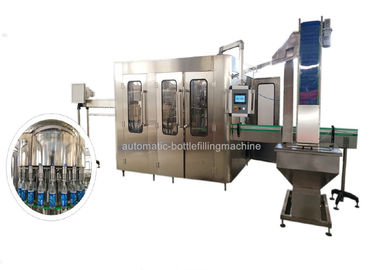

High Speed 24 Heads Mineral Water Filling Machine / Line PLC + Touch Screen

China High Speed 24 Heads Mineral Water Filling Machine / Line PLC + Touch Screen supplier

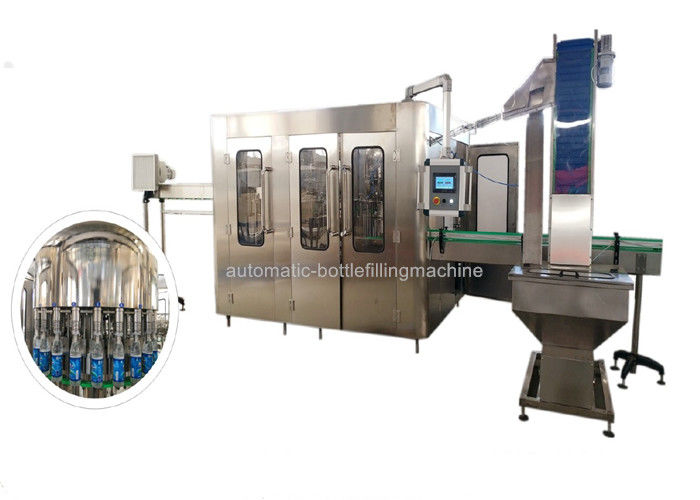

Large Image :  High Speed 24 Heads Mineral Water Filling Machine / Line PLC + Touch Screen

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Warranty: One Year For Free Control System: PLC+touch Screen
Atumatic Grade: Fully-automatic Power: 6.57kw
Bottle Type: Pet / Plastic Bottle Voltage: 380V/50Hz
Weight: 5500kg Dimension(L*W*H): 2750*2180*2200mm



Detailed description:



The water bottle filling machine is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. It adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.Most elements of electrical system employ foreign advanced products.Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc.The quality of the equipments reaches the international advanced level.



Technical parameter

Model CGF24-24-8
Production capacity(500ml)(b/h) 8000-10000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800
Spraying position 6
Dripping bottle position 3.5
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.4
Total power 6.57
Total weight 5500
Dimension(L*W*H) 2750*2180*2200mm

Washing part

1) The rotary wheel is a fully AISI304 stainless steel welded structure.

2) This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water

4) Covering of bottle clamps and elevator are product of IGUS

5) The rinse is driven by driving system positioned inside machine frame via gear transmission.


Filling part

1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.

2) Rotary wheel are fully made of stainless steel AISI304.

3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

6) Hydraulic pump is float-ball controlled.

7) The filler is driven by driving system positioned inside machine frame via gear transmission


Capping part

1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine is important to running credibility and product quality.

2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

4) Highly effective acentric way for cap sorting to reduce the abrasion.

5) It has the check-up device to control the cover lift.
