Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession

Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession
Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession

Large Image :  Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE SGS
Model Number: DCGF60-60-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Detailed Product Description
Name: Carbonated Soft Drink Bottling Machine Function: Filling Capping Labeling
Filling Matereial: Soda Water, Energy Drink Suitable Bottle: PET 250-2000ML
Capacity: 24000BPH Warranty: 1 Year
High Light:

automatic bottling machine

,

liquid bottle filling machine



Product feature

1)This drink filling machine carbonated is mainly used to fill the carbonated drink.
2)Washing,filling and capping are available in one machine.
3)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
4)The filling method adopts the isobaric filling so that the filling speed is faster and stable.
5)Using the advanced PLC(Programmable Logic Controller) technology.
6)The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.



specification



Model
(DCGF)
16/12/6
18/18/6
24/24/8
32/32/10
40/40/10
50/50/12
60/60/15
Rinsing heads
16
18
24
32
40
50
60
Filling heads
12
18
24
32
40
50
60
Capping heads
6
6
8
10
10
12
15
Capacity
(BPH)
2000
5000
7000
9000
14000
18000
24000
Power(kw)
2.2
3.5
4.5
6
7.5
9.5
11.2
Dimension
(mm)
2300*1600
*2500
2600*1920
*2550
3100*2200
*2800
3850*3000
*2850
4850*3800
*2750
7570*3550
*2750
6500*5500
*2750
Weight(kg)
2800
3650
4800
6800
8650
10500
12800





This machine capacity is 24000 bottles per hour (500ml).



rinser station

1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .

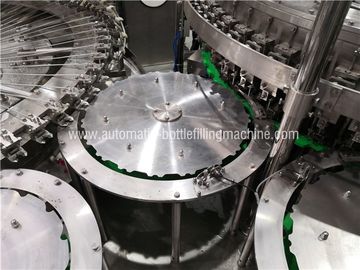

Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession 0



filler station

1)304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

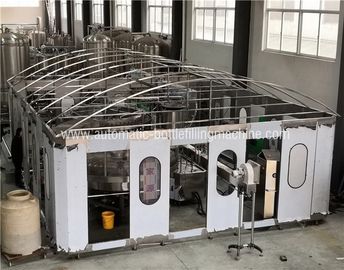

Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession 1



capper station

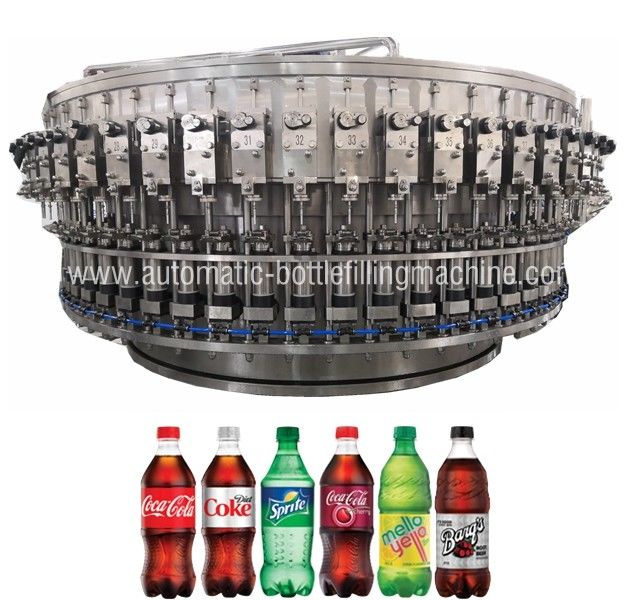

Pet Durable Automatic Bottle Filling Machine Carbonate Soft Drink Procession 2



We can supply the complete line plants, capacity ranges from 2000 bottles per hour to 24000BPH,

you are welcome to inquire... ...
