Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine

Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine
Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine

Large Image :  Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine

Product Details:
Place of Origin: China, mainland
Brand Name: JINYATE
Certification: ISO CE
Model Number: CGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: pls inquiry
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Water Bottling Machine Function: Rinse Fill Cap
Filling Material: Mineral Water, Pure Water Bottle Size: 250-2000ml
Cap Size: 28-38mm Material: SUS304
Cap Type: Sports Cap Control: PLC
High Light:

automatic bottling machine

,

liquid bottle filling machine

Water Bottling Equipment Prices, Automatic Bottle Filling Capping Machine



Main Features



1. The water filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.







Technical Data

Model



Washing heads

Filling heads Capping heads Capacity(B/H) Motor power(KW) Overall dimension(MM)
CGF8-8-3 8 8 3 2000-2500 1.2 2000*1400*2300
CGF14-12-5 14 12 5 2000-4000 1.5 2100*1400*2500
CGF16-16-5 16 16 5 5000-7000 2 2250*1600*2600
CGF18-18-6 18 18 6 6000-8000 2.2 2460*1720*2650
CGF24-24-8 24 24 8 8000-12000 3 3100*2100*2650
CGF32-32-10 32 32 10 12000-15000 8.6 3500*2500*2650
CGF40-40-10 10 40 10 16000-20000 7.5 4600*1800*2650
CGF48-48-12 48 48 12 20000-24000 9.5 5200*4500*3400



Machine Pictures

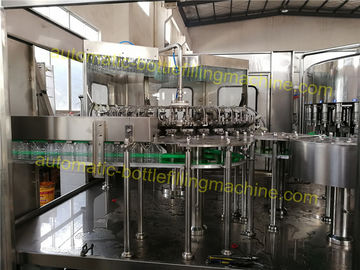

overall look

Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine 0

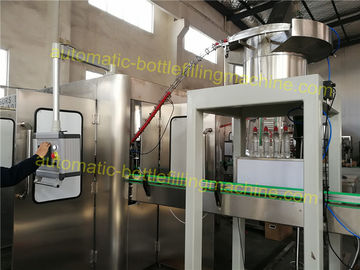

rinser

Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine 1

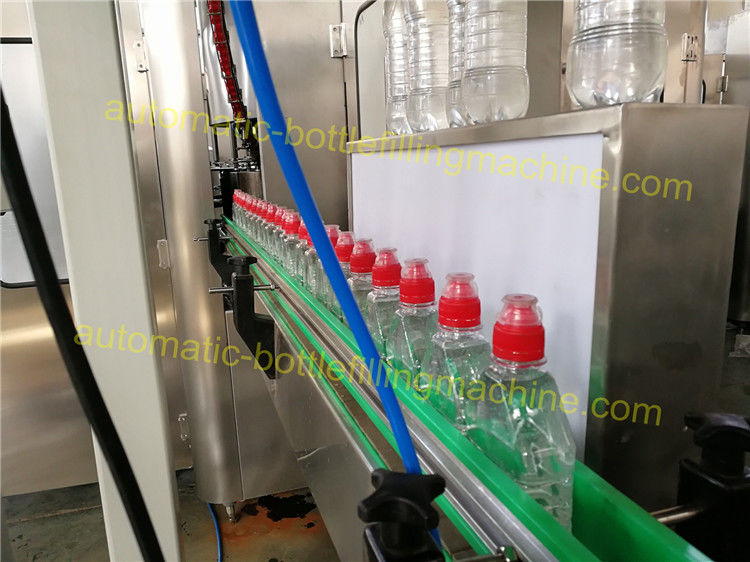

filler

Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine 2

Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine 3

capper

Pure Water Bottling Equipment , Automatic Bottle Filling Capping Machine 4



we can supply all complete line plants, including water treatment system, filling system, end-lina package sysem, pls tell us your capacity... ...
