| Pruduct Name: | Water Bottling Plant | Function: | Rinser Filler Capper |
|---|---|---|---|
| Filling Material: | Various Water, Non-carbonated Drink | Suitable Bottle: | PET Plastic Bottle |
| Suitable Cap: | Sports Cap, Plastic Screw Cap | Capacity: | 12000-14000BPH(500ml) |
| Warranty: | 1 Year | Material: | SUS304 |
| High Light: | liquid bottle filling machine,automatic bottle filling system |
||
Automatic Bottled Water Filling Machine Turkey,Distilled Water Equipment
| Product Description: |
|
This machine used to produce PET bottled water, it can rise fill cap in one machine. The machine adoptting advanced OMR ON programmed controller(PLC) is adapted to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is ideal first- choice equipment of beverage manufacturers. |
| 1. Automatic Bottling 3 in 1 mineral Water Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316. |
| 2. It is used for filling kinds of non-carbonated water, such as still water, drinking water. mineral water, spring water, flavored water. |
| 3. Its usual production capacity is in 15,000bph, 0.3-2L PET bottle is available. |
| 4. Pivotal electrical part use Mitsubishi, OMRON, SIEMENS. |
| 5. Filling accuracy is more or less than 1%. |
| 6. We can provide bottle blowing machine, bottle filling machine, labeling machine,wrapping packing machine etc. complete plant solution for PET bottle. with optional capacity from 3,000-15,000BPH. |
Main Technical parameters
| Main Technical Parameters: | |||||
| Model | 14-12-4 | 16-16-5 | 18-18-6 | 24-24-8 | 32-32-10 |
| Washing heads | 14 | 16 | 18 | 24 | 32 |
| Filling heads | 12 | 16 | 18 | 24 | 32 |
| Capping heads | 4 | 5 | 6 | 8 | 10 |
| Production capacity(b/h) | 3000(0.5L) | 5000(0.5L) | 8000(0.5L) | 12000(0.5L) | 15000(0.5L) |
| Motor power(kw) | 3 | 3 | 3 | 4 | 5.5 |
Machine Pictures

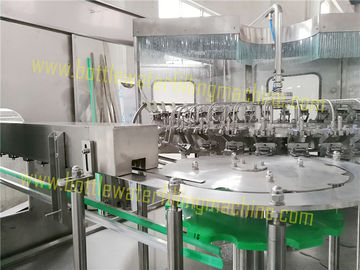

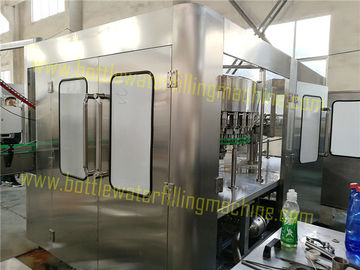

overall look

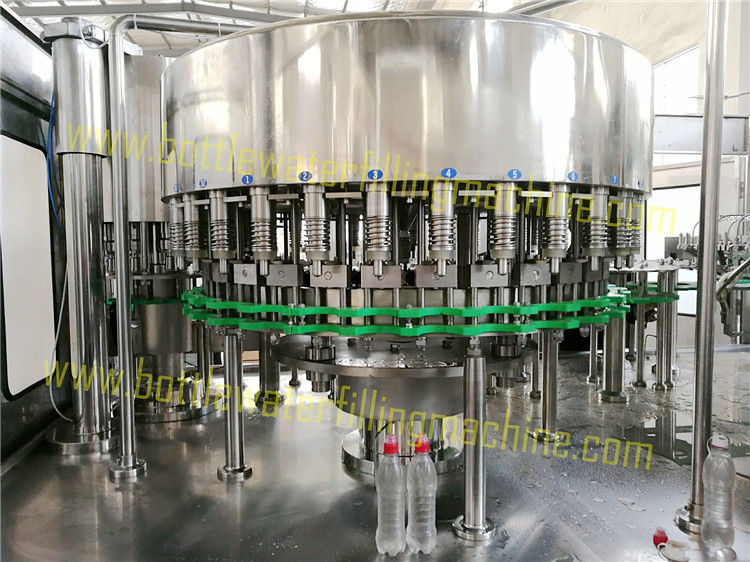

internal look
Cap elevator
If your inquiry, pls tell me your capacity and other request.. ...
