PET Bottle Mineral Water Filling Machine , Water Bottling Equipment

PET Bottle Mineral Water Filling Machine , Water Bottling Equipment
PET Bottle Mineral Water Filling Machine , Water Bottling Equipment PET Bottle Mineral Water Filling Machine , Water Bottling Equipment PET Bottle Mineral Water Filling Machine , Water Bottling Equipment

Large Image :  PET Bottle Mineral Water Filling Machine , Water Bottling Equipment

Product Details:
Place of Origin: China, mainland
Brand Name: JINYATE
Certification: ISO CE
Model Number: CGF16-12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: pls inquiry
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Water Bottle Filling Machine Function: Rinsing Filling Capping
Model Type: Tri-monobloc Suitable Bottle: PET Plastic Bottle
Filling Material: Water, Juice, Tea, Still Drink Capacity: 4000BPH(500ml)
Material: SUS304 Control: PLC+Touch Screen
High Light:

automatic bottling machine

,

liquid bottle filling machine

PET Bottle Mineral Water Filling Machine Price,



Water Bottling Equipment





Machine description



This machine is a tri-monobloc, it integrates rinser filler and capper in



one monobloc, suitable for PET bottled water, juice, tea or other still



drink. It's rough capacity is 4000BPH(500ml), 2500BPH(1000ml),



2000BPH(2000ml).





Besides this filling machine, we can supply all complete line plants:



water treatment system; filling system; end-line package system



Technical parameter

Model CGF16-12-6
Capacity 4000bph (500ml PET bottle)
Bottle Height 150-320mm
Bottle Diameter 40-108mm
Filling Tenperature ambient
Filling Technology gravity filling
Applications purified water,mineral water, juice, still drink
Power supply 380V 50Hz 3Phases or customized
Total power 4.23KW
Dimension 2150*1500*2300mm
Weight 3000kg



Machine pictures

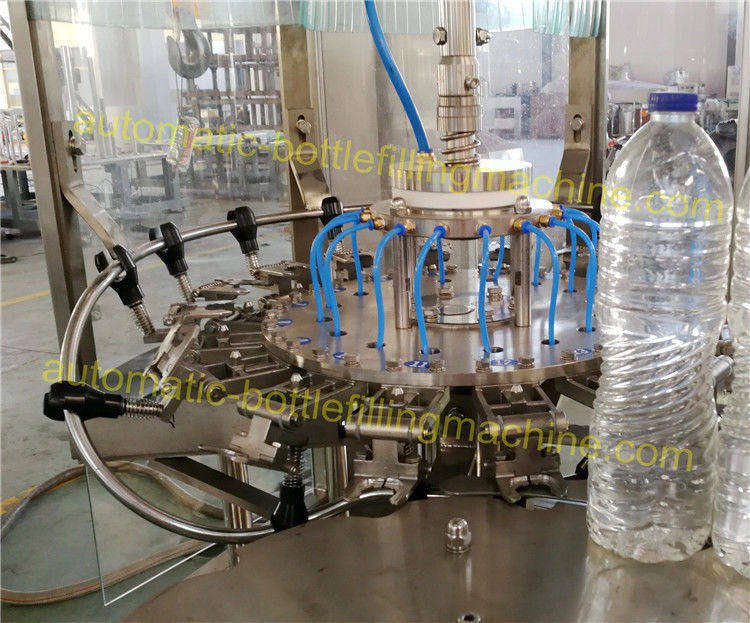

Overall look

PET Bottle Mineral Water Filling Machine , Water Bottling Equipment 0

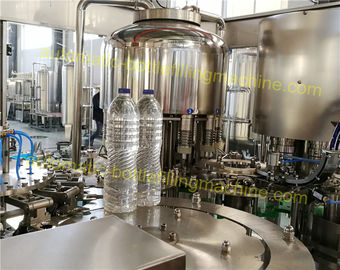

internal look

PET Bottle Mineral Water Filling Machine , Water Bottling Equipment 1

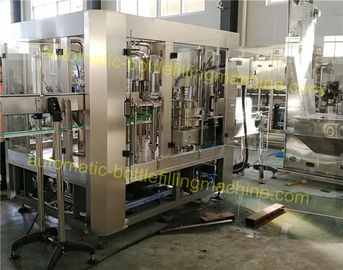

rinser station

PET Bottle Mineral Water Filling Machine , Water Bottling Equipment 2



Character

  • For different bottle size ,just need to change column wheel and turn table disc .
  • All the part which contact with filling material is high quality stainless steel ,without dead angle ,easy to clean .
  • Use high speed filling valve ,the liquid-level position control accurately ,to ensure that meet the requirements of filling process .
  • Capping head use magnetic constant torque device , make sure capping with high quality and without caps damage .
  • High-efficiency caps ordering system has prefect automatic control and protection devices .
  • Carried with prefect protection system to overload ,it can be used to protect facilities and operators efficiently .





If you want to get precise quotation, pls leave your capacity here,

more details i know more exact the proposal is... ...
