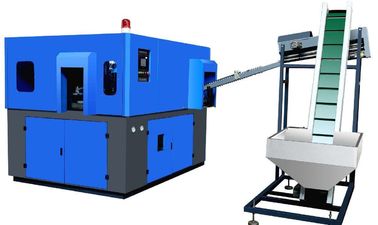

0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity

0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity
0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity 0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity

Large Image :  0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: JYT-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Products Name: Bottle Blow Molding Machine Usage: Make PET Bottle
Cavity Number: 4 Capacity: 3500B/H
Type: Full Auto Material: Stainless Steeel
High Light:

extrusion blow molding machine

,

pet stretch blow moulding machine


Fully-Automatic PET Bottle 0.5-2L Blow Molding Machine (4 Cavity)

Price

product description

JYT-4000 is the fastest liner blow molding machine in mainland of China by now. JYT-4000

reaches around 4000BPH for 350ml bottle. Its baking tunnel is separated from the blow

station so that time for mold opening is shortened with a result of speedy blowing and high

output, damage to machine is lessened so as to keep reliable performance and prolong

service life, as well as machine runs more smoothly and steadily.
JYT-4000 is controlled by PLC. The whole process from preform feeding to bottle

discharging is completed automatically with advantages of labor saving and no pollution.

JYT-4000 consists of three main parts: preform loading system, Heater channel & blow

station.

technical parameter


JYT-4000 Fully-auto blow molding machine

CONTAINER
Max container volume
L
2
Cavity

4
Theoretical output
BPH
4000

ELECTRICAL
Heating power
KW
42
Max heating power
KW
60
Installed power
KW
64

COMPRESSEDAIR
Operating Power
MPA
0.7
Air consuming
L/min
1400
Blowing pressure
MPA
3.0

MACHINE
SIZE(L*W*H)
MM
3600*2000*2030
Weight
KG
3500
Clamping force
KN
400

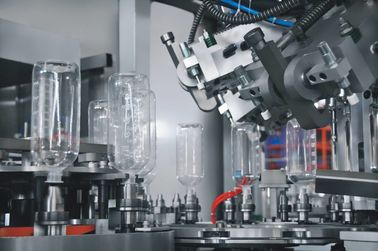

product pictures

0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity 0
0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity 1
0.5 - 2L PET Bottle Making Machine , PET Stretch Blow Moulding Machine 4 Cavity 2
