| Products Name: | Bottle Blow Molding Machine | Usage: | Make PET Bottle |
|---|---|---|---|
| Type: | Full Auto | Material: | Stainless Steeel |
| Dimension: | 3600*2000*2030mm | Weight: | 3500kg |
| High Light: | 4000BPH hdpe bottle blowing machine,4 cavity hdpe bottle blowing machine,auto ejected hdpe bottle making machine |
||
PET Plastic Bottle Making Machine / Extrusion Blow Molding
Machine
product description
Station A:Preform injection
The bottle neck will be molded accurately after injecting the material into the cavity, After proper control,the mold open and mandrils to...along with the cavity.
Station B:Blow molding
Blowing action was done at this part, molding would be complete after cooling. (bottle shape decides by the mold cavity). The air came out from the mandrils huffs the cavity, making the cavity cling to the mold. Then mold opens and the mandrils turn to...along with bottles.
Station C:Stripper
The bottle automatically will be ejected from the mandrils at this position and then to be
packed.The three actions of injection/blowing/ejection working at the same time,which makes the
machine of high efficiency and low waste with bottles.
technical parameter
JYT-4000 Fully-auto blow molding machine | |||
CONTAINER | Max container volume | L | 2 |
Cavity | 4 | ||
Theoretical output | BPH | 4000 | |
ELECTRICAL | Heating power | KW | 42 |
Max heating power | KW | 60 | |
Installed power | KW | 64 | |
COMPRESSEDAIR | Operating Power | MPA | 0.7 |
Air consuming | L/min | 1400 | |
Blowing pressure | MPA | 3.0 | |
MACHINE | SIZE(L*W*H) | MM | 3600*2000*2030 |
Weight | KG | 3500 | |
Clamping force | KN | 400 | |

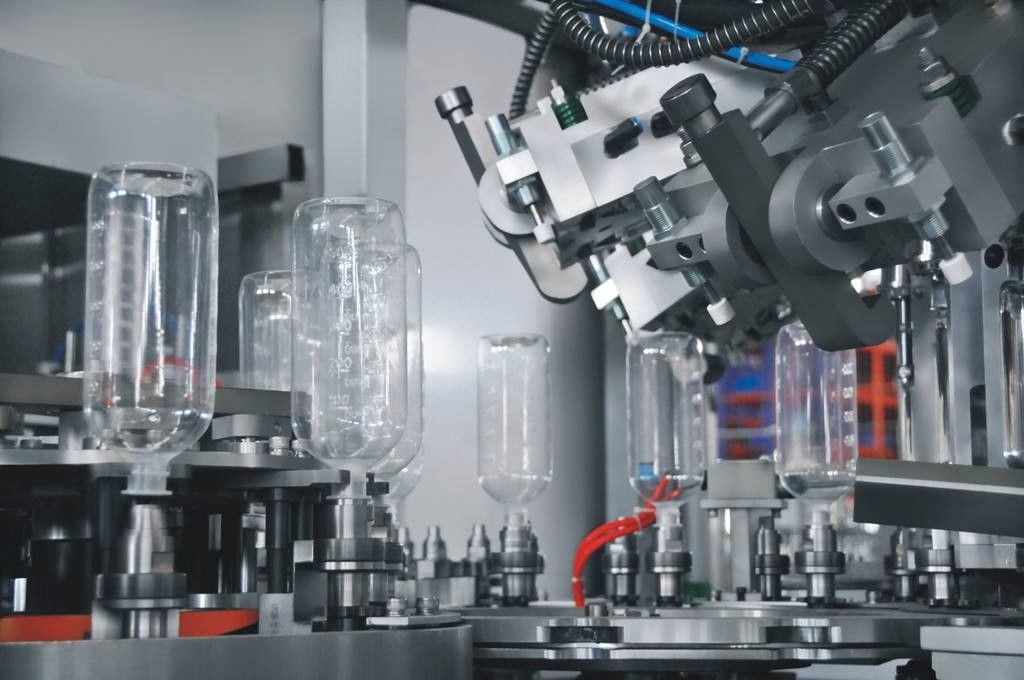

product pictures
