Electric Driven Injection Blow Molding Machine Safe Operating With One Heating Oven

Electric Driven Injection Blow Molding Machine Safe Operating With One Heating Oven
Electric Driven Injection Blow Molding Machine Safe Operating With One Heating Oven

Large Image :  Electric Driven Injection Blow Molding Machine Safe Operating With One Heating Oven

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: HY-B-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Type: Bottle Blowing Machine Condition: New
Driven Type: Electric Capacity: 800-1000BPH
Working Pressure: 0.8-1.0Mpa Blowing Pressure: 2.0-3.0Mpa
Body Height( Max): 420mm Body Diameter (max): 125mm
High Light:

pet stretch blow moulding machine

,

plastic blow moulding machine



Semi-Auto Bottle Blowing Machine With One Heating Oven And Two





Blowing Machine

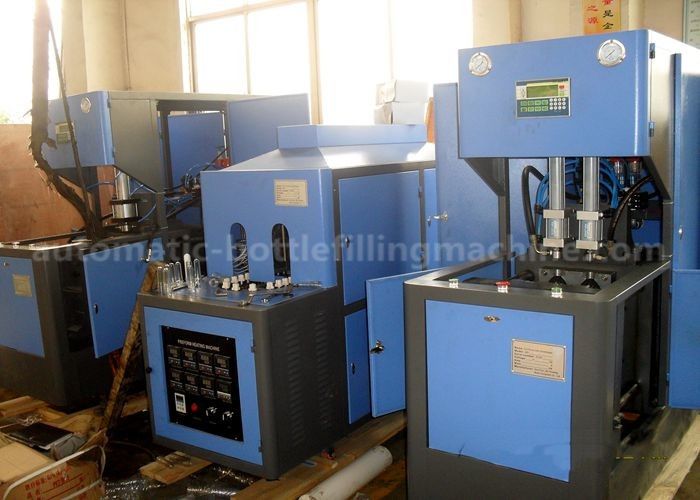

HY-B-I semi-automatic bottle blow molding machine



Specification:



1. This semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and



bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated



drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.



2. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to



heat the perform ,the perform rotated and heated equally.



3. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the



different requirements for the action and blow .It can provide sufficient and steady high pressure for



blowing large irregular shaped bottles.



4. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the



machine.



5. The machine can be operated in the step-by-step mode and the semi-auto mode.



The machine is small with low investment, easy and safe to operate.



Technical parameter



Name Item Unit Details
Blowing machine Dimension mm 1500*600*1750mm
Bottle volume (max) ml 2000
Bottle volume (min) ml 50
Bottle Neck Diameter (max) mm 40
Bottle Neck Diameter (min) mm 18
Body Diameter (max) mm 125
Body Height( max) mm 420
Number of Cavities mold 2
Production output pcs/h 800-1000BPH
Clamping force T 5.7(56KN)
Mold thickness mm 200(max)
Mold width mm 360x390
Space between Tie-bars mm 120-220
Diameter of Tie-bars mm 63
Scope of Tie-bars mm 405
Mold stroke mm 160
Stretching stroke (max) mm 420
Working pressure Mpa 0.8-1.0Mpa
Blowing pressure Mpa 2.0-3.0Mpa
Voltage/Power V/KW 220V/1KW

Pre-heater



Dimension mm 1870*630*1450mm
Weight kg 260
Voltage/Power V/KW 380V/14KW



Air cold dryer



Electric Driven Injection Blow Molding Machine Safe Operating With One Heating Oven 0

Flow capacity 1.0m³/min
W.P 3.0Mpa
Inlet temperature ≤80℃
Dew point 23℃
Ambient temperature ≤38℃
Power supply 380V/50HZ
Compressor power 0.75kw
Cold medium

R22





Bottle design



Electric Driven Injection Blow Molding Machine Safe Operating With One Heating Oven 1
