| Product Name: | Water Treatment Filter | Application: | Drinking Water |
|---|---|---|---|
| Material: | SUS304 | Condition: | New |
| Warranty: | 1 Year | Capacity: | 1-20T/H |
| High Light: | liquid bottle filling machine,automatic bottle filling system |
||
Pure Water Multi-Media Activated Carbon Filter / Water Treatment
Equipment Price
Technology instruction:
1. Quartz sand filter
It is widely used in RO system to remove different types of particles, such as suspended solids
(turbidity), colloidal compounds and etc. This process will reduce the load on the back-end filters
2. Carbon filter
The active-carbon filter is commonly used for removal of organic substance and heavy metal
element, suspended solids and etc. It can effectively reduce the level of COD and improve the
taste of water . After the quartz sand filter and active carbon filter, the water basically required the
water treatment plants water standard: SD1 ≤ 4; TDS≤400
System introduction:
Raw water -- raw water pump -- Quartz sand filter -- Active Carbon filter -- Water softener -- PP sediment filter -- 2M3/h RO system -- pure water
Specification :
| Model: | RO-1000I(12000L/H) |
| Capacity of pure water: | 30,000 L/H 25 |
| General power: | 36.5KW |
| Electrical power: | AC 380V 68A 50Hz |
| RO membranes: | CPA2 8040 25 items |
| Multi-phases pump: | CR45-8(Groundfos Brand) |
| Beforehand filter: | 1800×2400 2 items |
| Ion exchange tube: | 1000×1800 2 items |
| PP sediment membranes filter tube: | 500×1000×2.0 1 items |
| Booster pump: | CR45-2 |
| Active carbon filter: | 1600kg |
| Quartz sand filter: | 5000kg |
| Cation: | 1700L |
| Functions of the machine: | RO membranes auto wash and manual wash RO membranes manual wash with medicine Pure water high water level auto stop,low water level auto start Multi-phases pump protected without water Protected when no power,poor power,short circuit,larger electric current,creepage of electricity |
| Out size of main machine: Out size of beforehand filter: |
6000×1400×1900mm 7000×1900 |

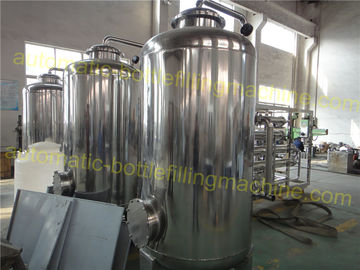

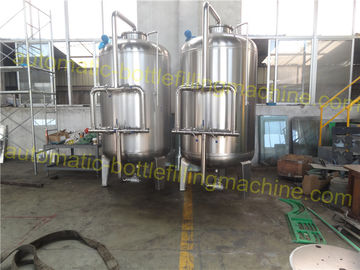

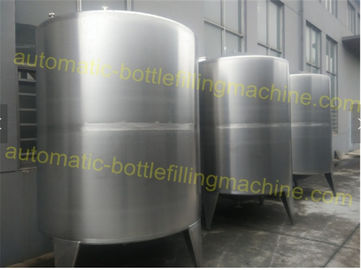

product pictures
