20000BPH Automatic Pet Bottle Drinking Water Filling Machine
Complete Line
Specification
1. Automatic bottle filling machine
2. 4-in-1 monoblock,it integrates bottle sterilizing,rinsing,filling,capping in on unit.
3. It suitable for filling mineral water,pure water,drinking water,etc.
4. It can fill pet bottle,plastic bottle,glass bottle,cans.
5. Its capacity is 20000 bottles per hour based on 500ml bottle
Description
1). The raw water will be purified and sterilized after passing through the water treatment system, and will
be stored in the purified water storage tank;
2). The juice will be prepared by the juice preparation system, the prepared juice is stored in the
insulation tank (for heat preservation) temporarily;
3). Automatic heat resistance PET bottle blow molding machine is connected with the water filling
machine by the Air conveyor;
4). Bottled water goes out from the water filling machine and will be transferred to the bottle over-turn
sterilizing machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing
machine, then the bottles will be transferred to the bottle cooling machine;
5). The bottles are getting dried after passing through the blowing dryer, and the dried bottle will go to the
labeling machine and PE film shrink wrapping machine;
6). The packed bottle water will come out from the PE film shrink wrapping machine.
7). Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for
longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.
8). Host adopt advanced PLC automatic control technology, the key electrical components from famous
company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.
Technique parameters:
| Model | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
| Production capacity(500ml)(b/h) | 4000-6000 | 8000-10000 | 12000-15000 | 16000-20000 |
| Filling precision | ≤±5MM(Liquid Level) | |||
| Polyester bottle standard(mm) |
Bottle diameter:Φ50-Φ100;Height:150-320
|
|||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of Washing bottle(MPa) |
0.18 |
|||
| Water consumption for Water bottle | 1600kg/h | 2500kg/h | 3500kg/h | 4500kg/h |
| Spraying position | 5 | 6 | 12 | |
| Dripping bottle position | 3 | 3.5 | 7 | |
| Gas source pressure(Mpa) | normal pressure | |||
| Gas consumption(m3/mm) | 0.3 | 0.4 | 0.5 | |
| Total power(kw) | 5.03 | 6.57 | 8.63 | 9.5 |
| Total weight(kg) | 3500 | 5500 | 8000 | 9000 |
| Dimension(L*W*H)mm | 2450×1800×2200 | 2750×2180×2200 | 3500×2200×2250 | 6250*3050*2400 |

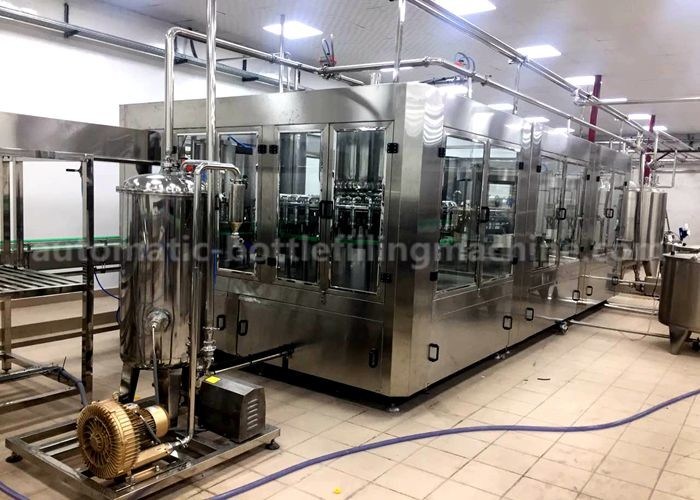

We provide this CGF40-40-40-12 Water filling line for our Congo's customer,these pictures are
photographed by our engineers when they installed the machines in Congo
If you want the video of it ,please kindly leave message to me,I can show
you the video of whole this water filling line
