| Filling Pressure: | Normal Pressure | Automatic Grade: | Fully-automatic |
|---|---|---|---|
| Packaging Type: | Bottles | Overall Dimension: | 1800*1200*2150mm |
| Power: | 5.88kw | Processing Type: | Water |
| Capacity: | 3000BPH (500ml) | Machine Material: | Stainless Steel 304 |
| High Light: | automatic bottling machine,liquid bottle filling machine |
||

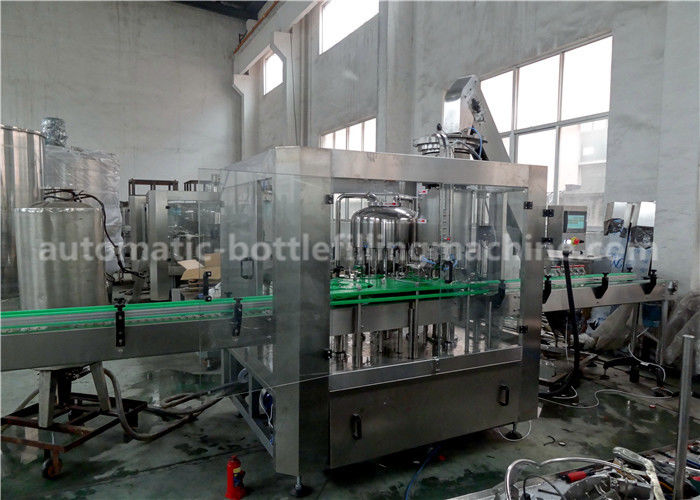

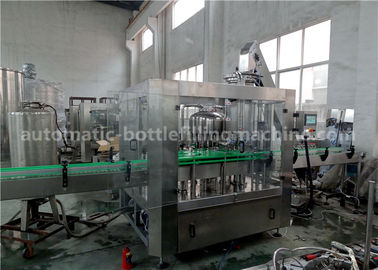

3000BPH Automatic Pure Water Filling Machine / Bottling Plant With
Glass Bottle
Features
1. This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully
automatic rinsing,filling and capping.
2. All the electrical elements use international famous brand products.
3. The parts which contact with the beverage are made of high quality stainless steel SUS304.
4. It adopts human-machine interface touch-screen and PLC program control.
5. It has automatic trouble protected decice.
6. Our machine have the advantage of durable using,high stability,low failure,etc.
7. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
8. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor
chains.
9. Super-low star wheel structure can highly improve the strength of the whole machine.
10. Central greasing oil system can grease all bearings easily.
11. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for
longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.
12. Host adopt advanced PLC automatic control technology, the key electrical components from famous
company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.
Technique parameter
| Model | CGF8-8-3 |
| Rinsing Head | 8 |
| Filling Head | 8 |
| Capping Head | 3 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Gas Consumption | 0.4 m3/min |
| Motor Power | 9.18kW |
| Voltage | 380V |
Rinsing parts
Revolved type bottle washing machine,mainly used to wash bottles for mineral water and other
beverage.New bottles go into the machine through bottle dividing pole.Bottles are held by clips and
turned over onto washing heads.After washing,drain water,bottles go into filling parts by star wheel.There
is a water tray on the washing machine for water recycle.

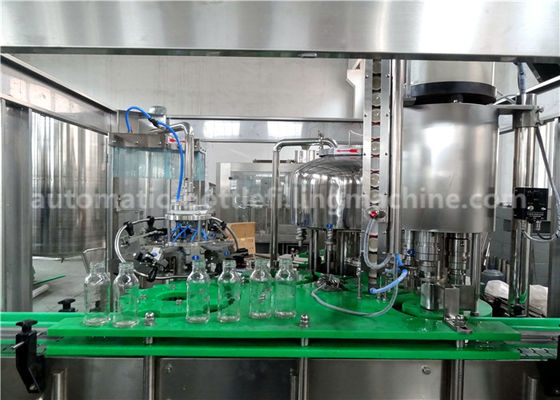

Filling parts
Filling machiane adopts German technology,produced by ourselves,obey to normal pressure filling
principle.
Float ball control the liquid level,making filling steady.
It adopts double guide pole structure.
Capping parts
Capping machine drives revolved plate by gear.Caps go out of the cap storage by centrifugal effect.At the
cap output,there is cap divider.The sensor inspects the quantity,the machine will stop when no caps.
