Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine

China Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine supplier
Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine supplier Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine supplier Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine supplier Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine supplier

Large Image :  Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine

Product Details:

Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: MFS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Contact Now
Detailed Product Description
Product Name: Milk Filling Machine Function: Filling Capping
Suitable Bottle: Glass Bottle Suitable Cap: Plastic Cap
Filling Heads: 18 Capping Heads: 6
Material: SUS304/316 Warranty: 1 Year



PLC Controlled Glass Bottle Soybean Milk Automatic Bottling



Sealing Machine Plant







technical parameter



1. Model: MFS18-6



2. Filling Heads: 18



3. Sealing Heads:6



4. Filling capacity: 250ml -1000ml



5. Production speed: 6000bottles/H(500ml)



6. Bottle height: 110-340mm



7. Bottle diameter: 38-120mm



8. Main motor power: 5.03Kw



9. Power supply: 3N-50Hz, 380V/220V



10. Air consumption: 1.6m3/Min



11. Overall dimension: 2450×1800×2200mm



12. Weight: 1500Kg



product description



This machine is a monobloc one, it integrates filling and capping two funtions in one machine. It's



used tofill glass bottle cow milk, soybean milk or other non-gas liquid. It has 18 filling heads and 6



capping heads, can reach 6000 bottles per hour.





product pictures

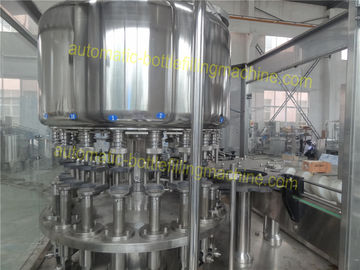

Filling



1). The rotating disk is all made of SUS304 stainless.



2). Filling method is gravity filling.



3). Filling valve manufactured by SUS304.



4). The filling valve structure design is reasonable, the filling quantity is accurate.



Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine

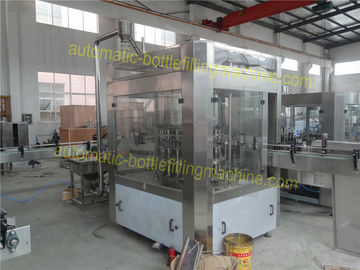

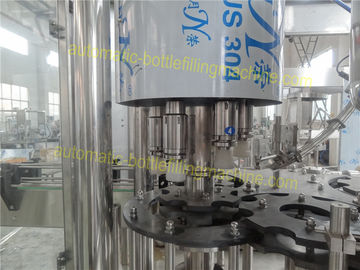

capping



Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine

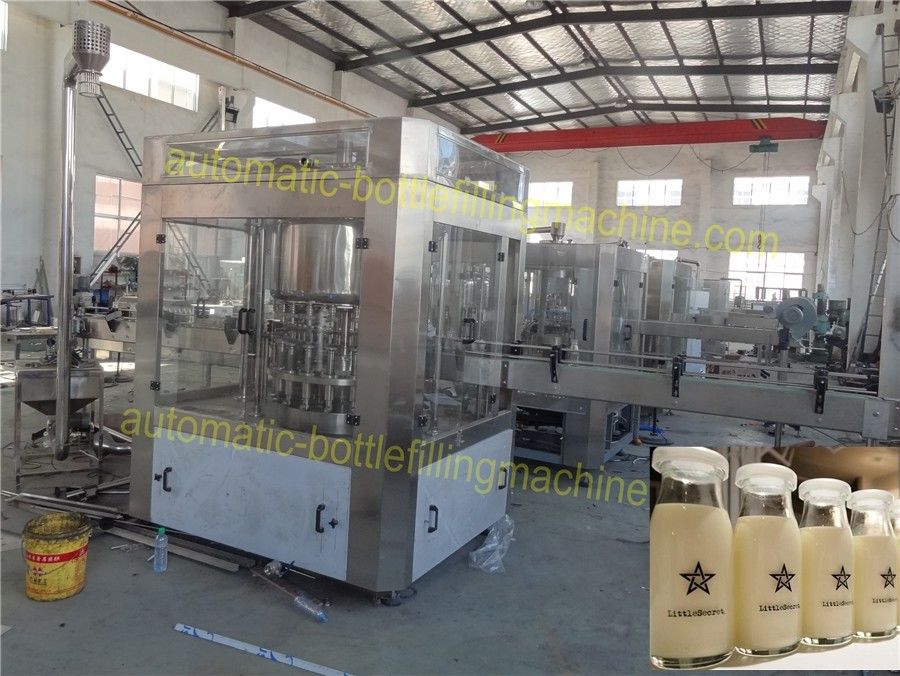

final product



Soybean Automatic Milk Filling Machine Compact Structure 6 Head Liquid Filling Machine



Besides this 6000B/H machine, we also have other capacity



Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

CFG14-12-5 14 12 5 1000bph 1.5KW 2100x1400x2500
CFG18-18-6 18 18 6 2000bph 2.2KW 2460x1720x2650
CFG24-24-8 24 24 8 3000bph 3KW 3100x2100x2650
CFG32-32-10 32 32 10 6000bph 4KW 3500x2500x2650
CFG40-40-10 40 40 10 8000bph 7.5KW 4600x1800x2650
CFG48-48-12 48 48 12 9000bph 9.5KW 5200x4500x3400
CFG60-60-15 60 60 15 12000bph 12KW 6500x4500x3400
