Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling

Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling
Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling

Large Image :  Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Detailed Product Description
Product Name: Milk Filling Machine Function: Filling Capping
Suitable Bottle: Glass Bottle Suitable Cap: Plastic Cap
Filling Heads: 18 Capping Heads: 6
Capacity: 6000B/H Voltage: 380V 50Hz
High Light:

liquid bottle filling machine

,

automatic bottle filling system



Glass Bottled Milk Filling And Packaging Machinery Production



Line Price





product description



1.Milk filling machine is used for production of bottled milk, lactate milk, soymilk, juice etc.



2.The machine completes the process of vacuum negative pressure filling, cap forming,



capping (optional) and high frequency sealing automatically.



3.Adopting world famous brand products from Germany, America, Japan, etc., including



various sorts of valve and the system of PLC, optic-electronic and temperature control,



pneumatic control and automatic lubrication etc.



4.It is best choice for modernized enterprises.



technical parameter



1. Model: MFS18-6



2. Filling Heads: 18



3. Sealing Heads:6



4. Filling capacity: 250ml -1000ml



5. Production speed: 6000bottles/H(500ml)



6. Bottle height: 110-340mm



7. Bottle diameter: 38-120mm



8. Main motor power: 5.03Kw



9. Power supply: 3N-50Hz, 380V/220V



10. Air consumption: 1.6m3/Min



11. Overall dimension: 2450×1800×2200mm



12. Weight: 1500Kg

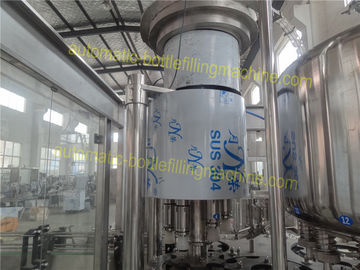

product pictures



Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling 0

Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling 1

Glass Bottled Automatic Milk Filling Machine CE Approved Vacuum Negative Pressure Filling 2



Besides this 6000B/H machine, we also have other capacity



Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

CFG14-12-5 14 12 5 1000bph 1.5KW 2100x1400x2500
CFG18-18-6 18 18 6 2000bph 2.2KW 2460x1720x2650
CFG24-24-8 24 24 8 3000bph 3KW 3100x2100x2650
CFG32-32-10 32 32 10 6000bph 4KW 3500x2500x2650
CFG40-40-10 40 40 10 8000bph 7.5KW 4600x1800x2650
CFG48-48-12 48 48 12 9000bph 9.5KW 5200x4500x3400
CFG60-60-15 60 60 15 12000bph 12KW 6500x4500x3400
