Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated

China Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated supplier
Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated supplier Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated supplier Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated supplier Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated supplier

Large Image :  Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated

Product Details:

Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: GD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Contact Now
Detailed Product Description
Product Name: Carbonated Soft Drink Canning Machine Machine Typr: Filling Capping 2-in-1 Monobloc
Filling Material: Beer, Gas Juice, Soft Drink Suitable Can: Aliuminum Can, Pop Can, Tin Can
Capacity: 2000-15000 Cans Per Hour Material: SUS304
High Light:

automatic bottling machine

,

automatic bottle filling system



Pop-Top Aluminum Can 250ml 330ml Filling Machine, Beer Can



Seamer Production Line







product description



  • It is a pop canned beer in the digestion and absorption of advanced foreign and
  •
  • domestic sealing machine on the basis of independent development of the can filling
  • ,sealing unit.
  •
  • Filling and sealing is the overall designed,power system by filling sealing system to
  •
  • ensure that both the absolute synchronization and coordination.
  •
  • It has the characteristics of filling reposefully,high speed,liquid level control,capping
  •
  • reliably,frequency conversion timing,less material loss.
  •
  • It adopts the advanced machine,electrical equipment,and pneumatic control technology,
  •
  • It can equip long-distance control system according to the customers' request.It is the
  •
  • preferred equipment for the medium beer and beverage plant





technical parameter



Model: GD-8 GD-12 GD-18 GD-24 GD-32
capacity (500ml based) 2000BPH 2600BPH 5000BPH 8000BPH 12000BPH
Suitable bottle : PET CAN, ALUMINUM CAN, IRON CAN AND SO ON
filling precision: ≤±5mm
filling pressure:(Mpa) ≤0.4Mpa
Machine power 2.2 2.2 2.2 3.5 3.5
Machine size:(mm) 750*800*2250 98000*900*2250 1300*1200*2250 1800*2200*2250 2100*2250*2500
weight: (kg) 1200 1500 1800 2500 3200



product pictures

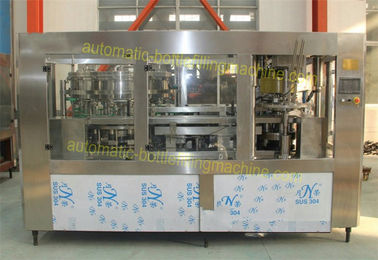

overall look



Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated 0



filling



Adopting the way of filling by holding the necks of the cans, plus the function of pre-cover of the centralizing cover with high precise centralization, which ensure the right seating of mouth of the can and filling valve, with low liquid loss.



Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated 1

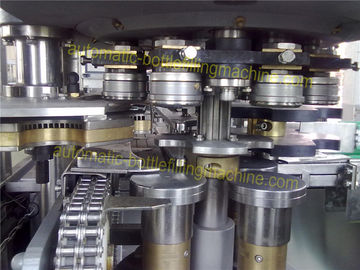

sealing



Adopting crowning the caps with magnetic force, which passes the torque with powerful and constant magnet, and the torque can be adjusted to meet the need of many kind of plastic caps.



Pop - Top Beverage Can Filling Machine 250ml 330ml Less Material Loss CE Certificated 2
