SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System

SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System
SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System

Large Image :  SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: QS-12, CY-12, FXZ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Water Bottling Production Machine Machine Type: Split Rising Filling Capping
Capacity: 2000 B/H Material: SUS304
Voltage: 380V 50HZ Suitable Bottle: PET Bottle
Filling Material: Various Water
High Light:

automatic bottling machine

,

automatic bottle filling system



2000BPH Small Scale Bottle Filling Machine For Mini Ro Water



System







product description



The split linear water bottling machine includs three machines, QS-12 Auto Bottle Washer

CY-12 Normal Pressure Filler, FXZ-1 Screw Capper, the three machines and linked together



by conveyor. It has 12 rising heads, 12 filling heads and 1 capping heads, suitable for PET bottle



various water, like mineral water, purified water, still water, flavor water, is also can fill juice and



other non-gas liquid, it's can produce 2000 bottles per hour (for 500ml), it's an ideal machinery for



small scall production.

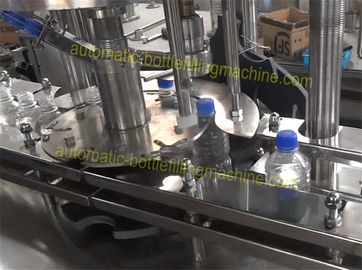

SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System 0





product details



QS-12 Auto Bottle Washer



QS-12 Auto Bottle Washing Unit is one of the most versatile medium speed rinsers available anywhere.it is



designed to effectively internally rinse up to 3,000 small bottles per hour/50 bottles per minute.It’s ideal for



rinsing bottles ranging in size from 12oz (335ml) up to 2liters.The stainless steel construction ensures



years of a long and durable life for the system.and since there are a minimum of moving



parts,maintenance to keep the system operating and maximum effciency is a snap.



technical parameter



Dimension(L×W×H) 1200×1200×1800 mm


Weight 960kg


Motor Power 0.55KW


Production Capacity 2000B/h (for 0.5L bottle)


Suitable bottle size Diamater: Φ50~Φ100mm


Height: 120~320mm

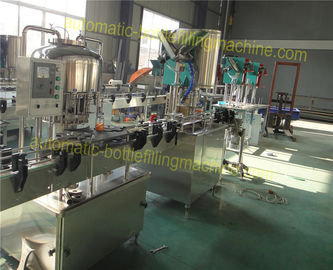

SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System 1



CY-12 Normal Pressure Filler



CY-12 Normal Pressure Filler& 24 Foot automatic conveyor System:The JFY-12 is designed to



automaticlly fill up to 3,000 bottles per hour and provides maximum versatility to keep pace with the



demands of your operation.The JFY-12 is designed and built to operate multiple shifts with a minimum of



the maintenance and does not requir highly skilled operators.The stae-of-the-art design and components



offer maximum performance,reliability and versatility to fill from 335ml up to 2liter bottle.



technical parameter


Dimension(L×W×H) 1200×1000×1950 mm

Net Weigh 750kg

Total Power 0.92KW

Production Capacity 2000B/h (for 0.5L bottle)

Suitable bottle size Diameter:40~100mm Bottle height: 50~235mm

Filling Accuracy Liquid level ±3mm

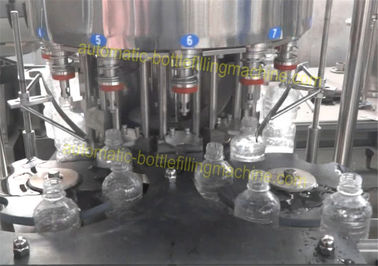

SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System 2



FXZ-1 Screw Capper



FXZ-1 Screw Capper is also one of the most unique capping systems available.To begin with,the filled



bottles first enter the build-in Bottles Spacing Mechanism.The bottles spacer allows for precise and



constant bottle spacing while entering the Cap Applier.This correct spaceing ensures that your caps are



applied evenly and consistently with the most accurate alignment possible.In preparation for cap



appliation,caps are first moved,from the shipping carton,into the Cap Hopper.



technical parameter


Dimension(L×W×H) 920×740×1950 mm


Weight: 350kg


Motor Power: 0.55KW


Cap Orderer Power: 0.12KW


Production Capacity(in theory) 2400B/h (for 0.5L bottle)


Suitable bottle Diameter: Φ50~Φ100mm


Height: 150~330mm


Mouth Screw Diameter: Φ27.5


Theft Proof Cap Size: Φ28×15(inner size)



SUS304 Small Scale Bottle Filling Machine , Automated Filling Machine For Mini Ro Water System 3



Besides this split machine, we also have 3-in-1 monobloc



Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-15
Number of rising heads 16 18 24 32 40 50
Number of filling heads 12 18 24 32 40 50
Number of capping heads 6 6 8 10 12 15
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml) 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH
Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12
