| Product Name: | Water Bottling Production Machine | Machine Type: | Split Rising Filling Capping |
|---|---|---|---|
| Rising Heads: | 12 | Filling Heads: | 12 |
| Capping Heads: | 1 | Capacity: | 2000 B/H |
| Material: | SUS304 | Voltage: | 380V 50HZ |
| High Light: | automatic bottling machine,automatic bottle filling system |
||
Automatic Split Liner Small Liquid Water Bottle Filling And
Capping Machine
product description

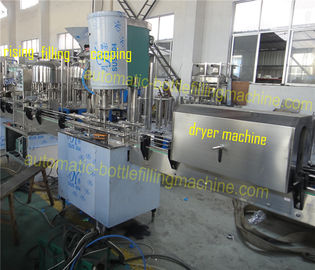

The split linear water bottling machine includs three machines, QS-12 Auto Bottle Washer
, CY-12 Normal Pressure Filler, FXZ-1 Screw Capper, the three machines and linked together
by conveyor. It has 12 rising heads, 12 filling heads and 1 capping heads, suitable for PET bottle
various water, like mineral water, purified water, still water, flavor water, is also can fill juice and
other non-gas liquid, it's can produce 2000 bottles per hour (for 500ml), it's an ideal machinery for
small scall production.
product details

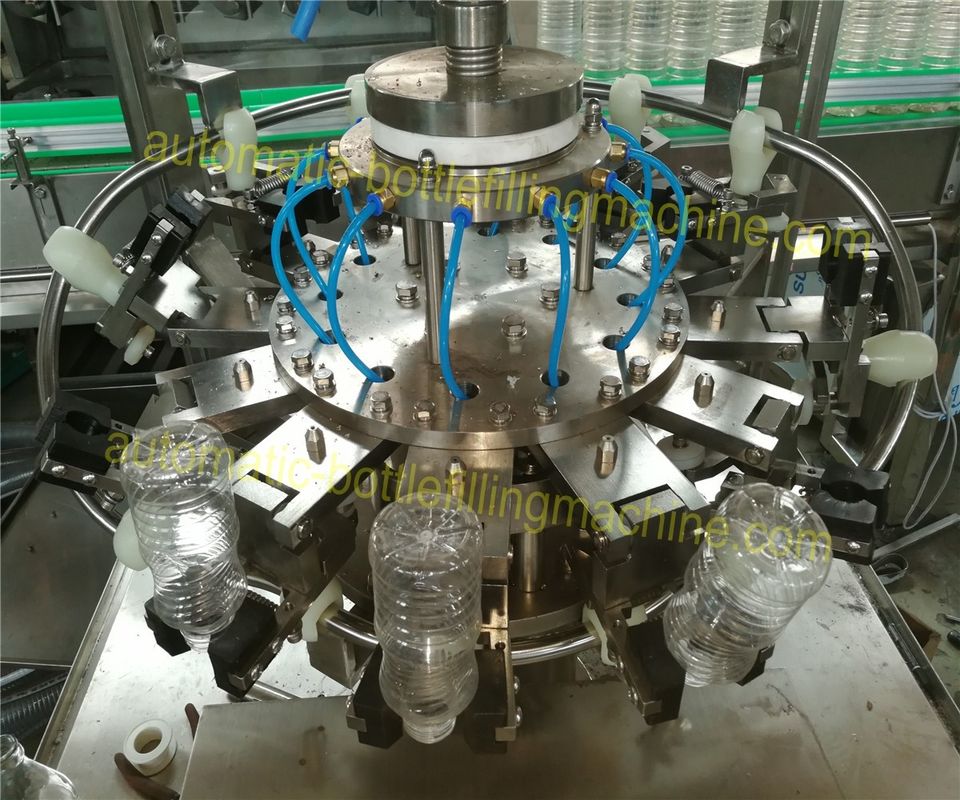

QS-12 Auto Bottle Washer
QS-12 Auto Bottle Washing Unit is one of the most versatile medium speed rinsers available anywhere.it is
designed to effectively internally rinse up to 3,000 small bottles per hour/50 bottles per minute.It’s ideal for
rinsing bottles ranging in size from 12oz (335ml) up to 2liters.The change over from one size bottle to
another could be easier.It takes literally minutes and no tools are required nor are there any special molds
or adapters required for the change overs.
technical parameter
Dimension(L×W×H) 1200×1200×1800 mm
Weight 960kg
Motor Power 0.55KW
Production Capacity 2000B/h (for 0.5L bottle)
Suitable bottle size Diamater: Φ50～Φ100mm
Height: 120～320mm
CY-12 Normal Pressure Filler
CY-12 Normal Pressure Filler& 24 Foot automatic conveyor System:The JFY-12 is designed to
automaticlly fill up to 3,000 bottles per hour and provides maximum versatility to keep pace with the
demands of your operation.The JFY-12 is designed and built to operate multiple shifts with a minimum of
the maintenance and does not requir highly skilled operators.The stae-of-the-art design and components
offer maximum performance,reliability and versatility to fill from 335ml up to 2liter bottle.
technical parameter

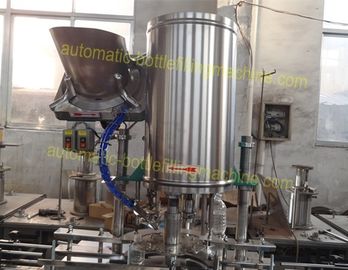

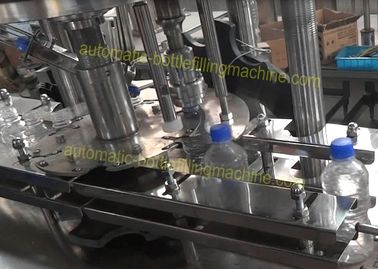

FXZ-1 Screw Capper
FXZ-1 Screw Capper is also one of the most unique capping systems available.To begin with,the filled
bottles first enter the build-in Bottles Spacing Mechanism.The bottles spacer allows for precise and
constant bottle spacing while entering the Cap Applier.This correct spaceing ensures that your caps are
applied evenly and consistently with the most accurate alignment possible.In preparation for cap
appliation,caps are first moved,from the shipping carton,into the Cap Hopper.
technical parameter
Dimension(L×W×H) 920×740×1950 mm
Weight: 350kg
Motor Power: 0.55KW
Cap Orderer Power: 0.12KW
Production Capacity(in theory) 2400B/h (for 0.5L bottle)
Suitable bottle Diameter: Φ50～Φ100mm
Height: 150～330mm
Mouth Screw Diameter: Φ27.5
Theft Proof Cap Size: Φ28×15(inner size)
Besides this split machine, we also have 3-in-1 monobloc
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
