| Product Name: | Water Bottling Machine | Function: | Rising Filling Capping |
|---|---|---|---|
| Model: | CGF8-8-3 | Capacity: | 3000B/H (for 500ml) |
| Machint Type: | Monobloc Rotary Machine | Suitable Bottle: | PET Bottle |
| Bottle Size: | 250-1000ml | Filling Material: | Mineral Water, Purified Water |
| Material: | SUS304 | ||
| High Light: | liquid bottle filling machine,automatic bottle filling system |
||
Small Mineral Water Plant, Small Scale Bottle Filling Machine
Equipment Line
product description
This is the smallest capacity monobloc water machine, it has 8 rising heads, 8 filling
heads and 3 capping heads, the max capacity can reach 3000 bottles per hour ( for
500ml),it is suitable for PET bottle, mineral water, purified water, still water, flavor water
or other non-gas liquid.
technical parameter
| Model: | CGF8-8-3 |
| Capacity:500ml(b/h) | 3000 |
| Suitable Bottle Height(mm) | 130-280 |
| Suitable Bottle Body Diameter(mm) | Φ40-φ80 |
| Suitable Cap Shape | Plastic Screw Cap |
| Filling Precision | ≤±5mm(Liquid Level) |
| Power: (KW) | 3 |
| Filling Temperature: | Room Temperature |
| Water Pressure of Washing Bottle(Mpa) | 0.18 |
| Water Consumption for Washing Bottle(kg/hr) | 800 |
| Gas Source Pressure(Mpa) | Normal Pressure |
| Gas Consumption(m 3 /min) | 0.3 |
| Size L×W×H (mm) | 1900x1400x2350 |
| Total Weight:(kg) | 1500 |
| Power Supply | 380V/50HZ |

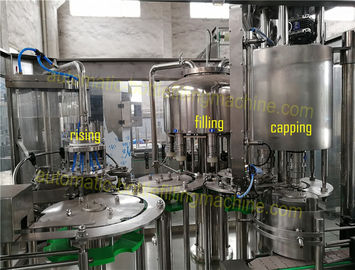

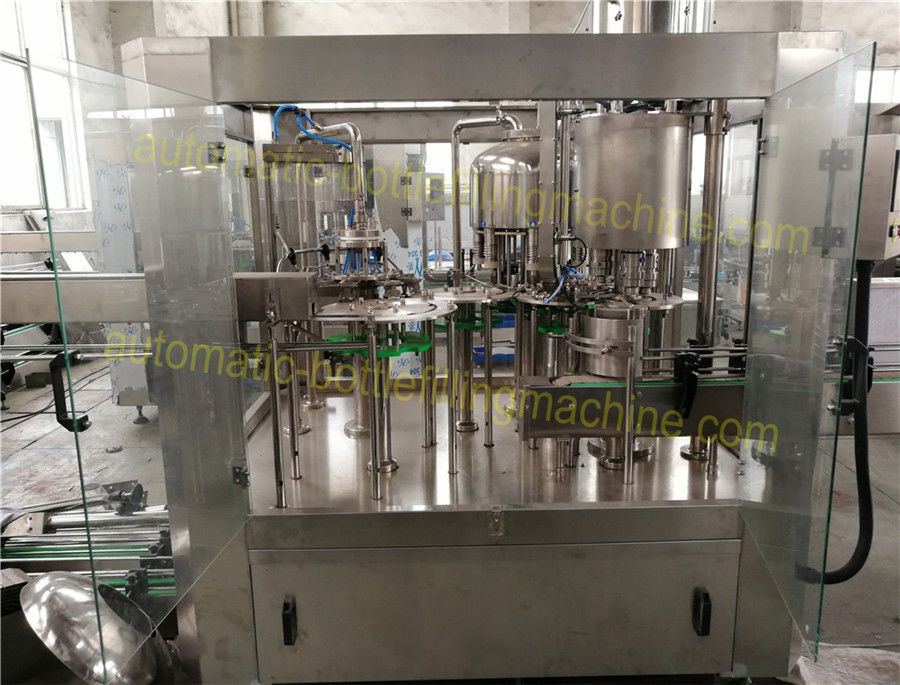

product pictures
rising

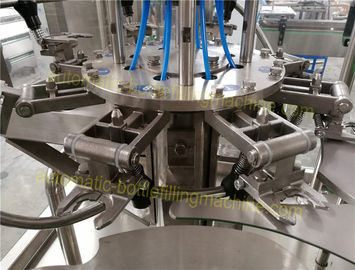

The automatic rinse rotor has spring loaded grippers mounted radially which pick up bottles one by one
from the infeed transfer rotor. The bottle is inverted against a lever on the rinse valve to start the rinsing
operation. Thus we have NO BOTTLE - NO RINSE. Bottles are washed for upto three seconds each,
before draining ( for removal of residual water ) and uprighting for transfer to the filling rotor. The rinsing
medium is generally product water.
filling
The internationally accepted and approved VENT PIPE filling principle ensures accurate level filling
without spillage. The filling accuracy is ± 5 ml. The fill tank level is regulated automatically by a PLC
controlled electronic probe which reduces the machine speed in the vent of disrupted input product water
supply. The machine speed is then restored to normal once the water supply is replenished.
capping
Torque adjustable, magnetic capping heads mounted on the capping rotor, complete the capping
operation using the extremely dependent PICK & PLACE mechanism. Capping head descends to push up
the cap in two stages and then descends onto the bottle neck to complete capping operation. The torque
on each capping head can be adjustable to achieve optimum capping results without cap damage /
leakage. A unique anti turn device prevents bottle rotation during capping for positive capping.
