Zhangjiagang Jinyate Machinery Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Water Bottling Machine | Function: | Rising Filling Capping |
|---|---|---|---|
| Model: | CGF40-40-12 | Capacity: | 16000-18000 B/H For 500ml Bottle |
| Suitable Bottle: | PET Plastic Bottle | Filling Material: | Mineral Water, Purified Water, Still Water, Juice |
| Dimension: | 3500*2200*2250mm | Weight: | 8000kg |
| Material: | SUS304 | Warranty: | 1 Year |
| High Light: | automatic bottling machine,liquid bottle filling machine |
||
Automatic Liquid Bottle Filling Machine,Bottle Washing Machine
Manufacturers
Product Description
The machine is used for producing drinking water in PET bottle, like pure water, mineral water,
natural water and so on.
Adopting hanging-neck technology, it can transfer the plastic bottle more stably and fast.
One machine can finish washing bottle, filling and capping three processes, sanitary and high-
efficiency.
High-quality filling valve guarantee the filling level precision.
Machine is controlled by PLC automatically, all the electrical element are world famous brand,
making sure the machine work stable.
Technical parameter
| Model: | CGF40-40-12 |
| Capacity:500ml(b/h) | 16000-18000 |
| Suitable Bottle Height(mm) | 130-280 |
| Bottle material | PE, Plastic |
| Suitable Bottle Body Diameter(mm) | Φ40-φ80 |
| Suitable Cap Shape | Plastic Screw Cap |
| Filling Precision | ≤±5mm(Liquid Level) |
| Power: (KW) | 9.63 |
| Filling Temperature: | Room Temperature |
| Water Pressure of Washing Bottle(Mpa) | 0.18 |
| Water Consumption for Washing Bottle(kg/hr) | 1000 |
| Gas Source Pressure(Mpa) | Normal Pressure |
| Gas Consumption(m 3 /min) | 0.6 |
| Size L×W×H (mm) | 3500x2200x2250 |
| Total Weight:(kg) | 8000 |
| Power Supply | 380V/50HZ |

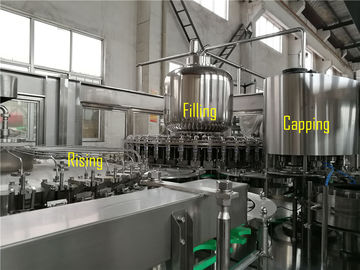

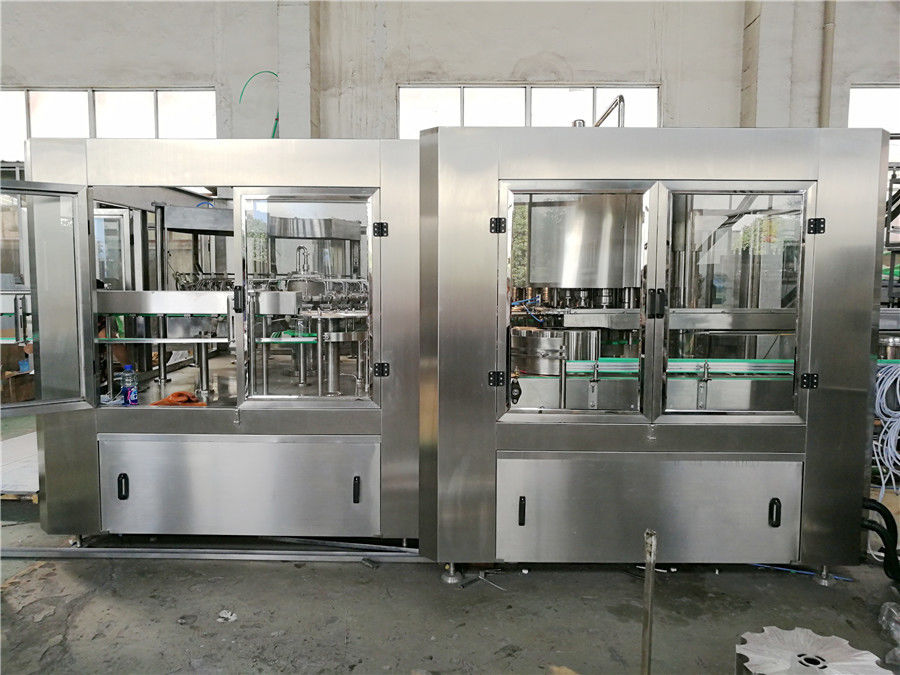

product pictures
rising

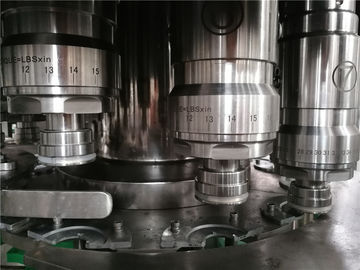

filling
capping
besides this CGF40-40-12, we also have other capacity
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
1.Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
2.Q: What payment terms you take?
A: We prefer T/T, but other terms also workable for us.
3.Q: Will you send engineers to install the plant?
A: Yes, Our factory have professional installation team and after-sales team for you .Our senior engineers
will have a good training to how to operate the machines and the complete production line for you and
your workers.
4.Q: How can I visit and check your company?
A.Our factory is located in Our factory is located in Zhangjiagang City.,Jiangsu
Province,China (Mainland).
From Shanghai International Airport to our office need only 120 minutes.
5.Q: How long is your guarantee?
A: Twelve Months Guarantee except sparing parts. You will be welcome to contact us with any problem
might occured.
6.Q: Voltage Requirement ?
A:Usually it is 380V, 50HZ, 3Phase , or Some Countries are 220V, 240V, 415V industrial Voltage all is OK.
