3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity

3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity
3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity 3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity 3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity 3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity

Large Image :  3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity

Product Details:
Place of Origin: China(Mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 99 sets per year
Detailed Product Description
Product Name: Water Bottling Machine Function: Rising Filling Capping
Model: CGF18-18-6 Capacity: 6000B/H For 500ml Bottle
Suitable Bottle: PET Plastic Bottle Filling Material: Mineral Water, Purified Water, Still Water, Juice
Dimension: 2450*1800*2200mm Weight: 3500kg
Warranty: 1 Year
High Light:

automatic bottling machine

,

automatic bottle filling system



3-In-1 Bottle Washing Filling Capping Machine / Mineral Water



Bottling Plant





product description



This Automatic Wash-filling-capping Water Filling Machine is used to produce bottled mineral



water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine



can be applied to all kinds of plastic products such as PET, PE Bottles, size varies from 250ml-



2500ml meanwhile few changeover is needed. This machine has 18 rising heads, 18 filling



heads and 6 capping heads, capacity varies from 4000BPH to 6000BPH (for 500ml PET bottle).







Our water filling machine is designed for the low/middle capacity and small factory. It features low



water and low electricity consumption, small space occupation as well as easy operation. At the



same time It improves the sanitary conditions and simplifies the maintenance compared with the



last generation water filling machine. it can perfectly complete the function of automatic washing,



filling and capping, which has been aproved by our clients as technical matured and quality



product.







Technical parameter



Model CGF18-18-6
Capacity 6000bph (500ml PET bottle)
Bottle Height 150-320mm
Bottle Diameter 40-108mm
Filling Tenperature ambient
Filling Technology gravity filling
Applications purified water and mineral water
Power supply 380V 50Hz 3Phases or customized
Total power 5.03KW
Dimension 2450*1800*2300mm
Weight 3500kg



product pictures

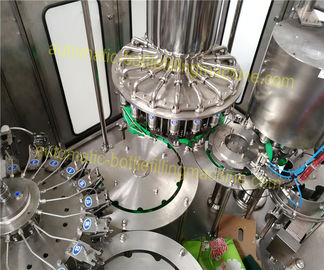

rising



3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity 0

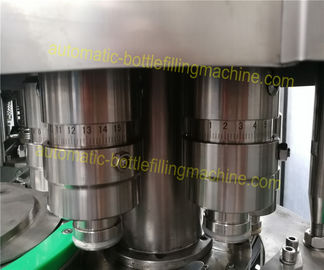

filling



3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity 1

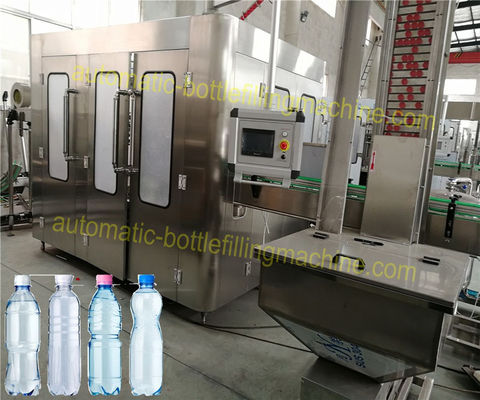

capping



3 In 1 Bottle Filling And Capping Machine 3500KG Weight For Low / Middle Capacity 2



besides this CGF18-18-6, we also have other capacity



Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-15
Number of rising heads 16 18 24 32 40 50
Number of filling heads 12 18 24 32 40 50
Number of capping heads 6 6 8 10 12 15
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml) 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH
Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12
