| Producti Name: | Glass Bottle Non-gas Liquid Filling Machine | Filling Material: | Water, Juice, Tea, Other Non-gas Liquid |
|---|---|---|---|
| Suitable Bottle: | Glass Bottle | Suitable Cap: | Crown Cap, Ring-pull Cap |
| Bottle Size: | 200-2000ml | Model: | BCGF18-18-6-6 |
| Capacity: | 6000B/H | Material: | SUS304 |
| Warranty: | 1 Year | ||
| High Light: | automatic bottling machine,automatic bottle filling system |
||
Glass Bottle Juice, Tea Non-Gas Liquid Hot Filling Capping Labeling
Machine Line
product presentation
The BCGF18/18/6/6 type rinser&filler&capper produced by our company is a new product, which
based on introducing in, assimilating and absorbing from the domestic and foreign same genus
production, and combined our many year’s experience. It integrated rinser, filler and capper
together, as one unit motor is driven though the worm reducer-gear wheel to run synchronously.
The advantages include high automatization, compact structure, fine performance, convinently
operating, safety and frequency conversion changeable capacity, etc. It’s a technic advances and
capability excellent filling equipment for non-carbonic drink (e.g.:pure water, mineral water). The
equipment suits round or square pet bottles’ filling and capping. For different size bottles, we only
need to change less bottle mould alteration parts and adjust the level position partly, then could
meet the client’s requirements.
Thechnical description:
Model: BCGF18-18-6-6
Capacity:6000BPH (500ml)
Suitable bottle: glass bottle
Suitable cap: crown cap, ring-pull cap
Filling type:hot filling
component construction:
1. bottle inlet conveyor
2. bottle outlet conveyor
3. cap loader
4. rising
5. filling
6. capping (two kinds caps)

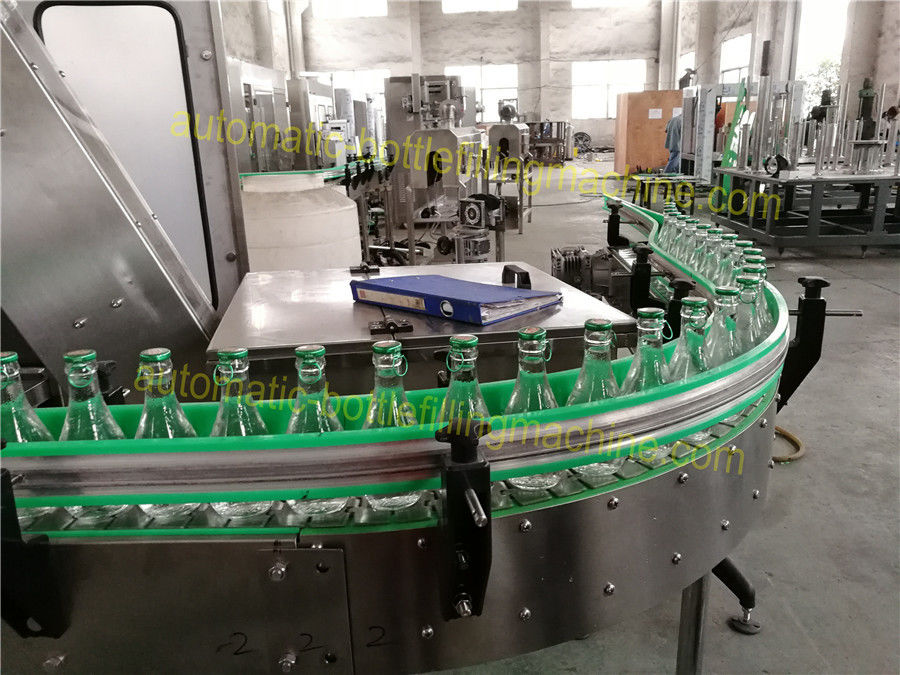

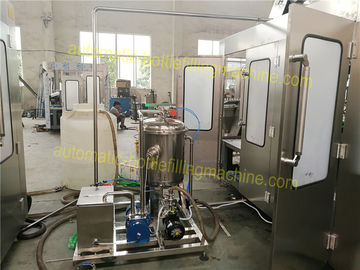

product pictures
This machine integerates bottle rising, filling and capping in one monobloc, it is suitable
for glass bottle, and for all non-gas liquid, such as water, juiced beverage, tea, wine etc.
This machine is our exclusive design, it can seal two kinds caps in one machine, crown
cap and ring pull cap, it has 18 rising heads, 18 filling heads, 6 crown cap sealing heads
and 6 ring-pull cap sealing heads, can filling 6000 bottles per hour.

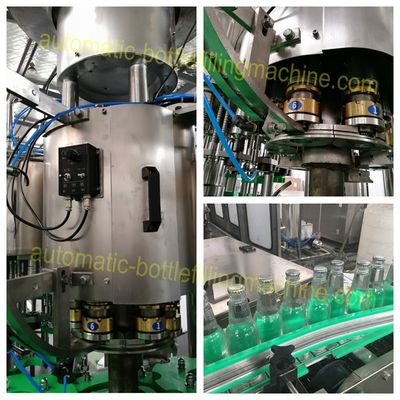

rising parts
filling parts
crown cap sealing
ring-pull cap sealing
Besides this, we also have other capacity:
| Mode | BGF12-12-6 | BGF18-18-6 | BGF24-24-6 | BGF32-32-8 |
| 2000-3000 | 4000-6000 | 6000-8000 | 8000-12000 | |
| Total power(kw) | 1.5 | 1.5 | 3.75 | 5.6 |
| Dimension(L*W*H)(mm) | 1700*1100*2300 | 1830*1320*2300 | 1950*1580*2500 | 2100*1850*2500 |
| Total weight(kg) | 2000 | 2400 | 3000 | 3500 |
flowchart of water treatment system
Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner (Sodium Ion
Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—
finished product water tank
we can supply all these plants and also can advise the most
commercial solutions, pls have a furthur learn... ...
