6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine

6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine
6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine 6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine 6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine 6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine

Large Image :  6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine

Product Details:
Place of Origin: China(mainland)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: BCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 99 sets per year
Detailed Product Description
Producti Name: Glass Bottle Non-gas Liquid Filling Machine Filling Material: Water, Juice, Tea, Other Non-gas Liquid
Suitable Bottle: Glass Bottle Suitable Cap: Crown Cap, Ring-pull Cap
Bottle Size: 200-2000ml Model: BCGF18-18-6-6
Capacity: 6000B/H Material: SUS304
Warranty: 1 Year
High Light:

automatic bottling machine

,

liquid bottle filling machine



Glass Bottle Juiced Beverage, Water, Tea Filling Machinery / Production



Line



product presentation



This machine integerates bottle rising, filling and capping in one monobloc, it is suitable



for glass bottle, and for all non-gas liquid, such as water, juiced beverage, tea, wine etc.



This machine is our exclusive design, it can seal two kinds caps in one machine, crown



cap and ring pull cap, it has 18 rising heads, 18 filling heads, 6 crown cap sealing heads



and 6 ring-pull cap sealing heads, can filling 6000 bottles per hour.





Thechnical description:



Model: BCGF18-18-6-6



Capacity:6000BPH (500ml)



Suitable bottle: glass bottle



Suitable cap: crown cap, ring-pull cap



Filling type:hot filling



component construction:



1. bottle inlet conveyor



2. bottle outlet conveyor



3. cap loader



4. rising



5. filling



6. capping (two kinds caps)



Character



1. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to



adjust the equipment level, only change related the curved plate, wheel and nylon parts is



enough.
2. The specially designed stainless steel bottle washing machine clip is solid and durable, no



touch with the screw location of bottle mouth to avoid secondary pollution.


3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.


4. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of



conveyor chains.


5. Host adopt advanced PLC automatic control technology, the key electrical components from



famous company such as Japan's Mitsubishi, France Schneider, OMRON.



product pictures

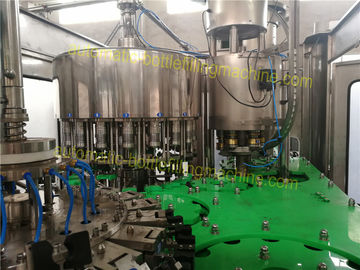

6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine 0

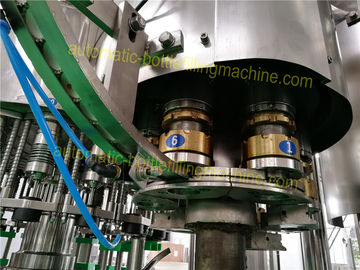

6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine 1

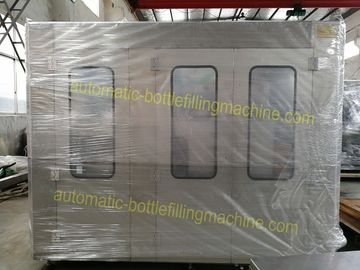

6000BPH Bottled Water Making Machine , Glass Bottle Commercial Bottling Machine 2



Besides this, we also have other capacity:



Mode BGF12-12-6 BGF18-18-6 BGF24-24-6 BGF32-32-8
  2000-3000 4000-6000 6000-8000 8000-12000
Total power(kw) 1.5 1.5 3.75 5.6
Dimension(L*W*H)(mm) 1700*1100*2300 1830*1320*2300 1950*1580*2500 2100*1850*2500
Total weight(kg) 2000 2400 3000 3500



flowchart of non-gas beverage production:



1.water treatement system;   2. beverage preparation system; 3. filling system; 4package system



we can supply all these plants and also can advise the most



commercial solutions, pls have a furthur learn... ...
