Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing

Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing
Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing

Large Image :  Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing

Product Details:
Place of Origin: JIAYUAN
Brand Name: JINYATE
Certification: CE SGS
Model Number: BCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 workking day
Payment Terms: L/C, T/T
Supply Ability: 99 sets per year
Detailed Product Description
Production Name: Glass Bottle Beer Filling Machine Function: Washing Filling Capping
Model: BCGF24-24-8 Capacity: 3500-5000B/H
Suitable Bottle: Glass Bottle Filling Material: Beer, Carbonated Beverage, Gas Juice
Control: PLC+Touch Screen Material: SUS304
Warranty: 1 Year
High Light:

automatic bottling machine

,

automatic bottle filling system



Crown Cap Glass Bottle Beer Rising Filling Sealing Machine



Equipment





Description



This machine design on the basis of absorbing domestic and foreign advanced technology,and



integrates washing,filling and capping function in one unit,and mainly for filling glass bottle



carbonated drink,such as spirit,cola,cocktail,etc,adopts high precision machanical filling



valves,has features of no bottle,no vacuuming.



Opening gear combined gear box transmission,with engaging and disengaging gear



device,frequency conversion extends the speed modulation range.This machine has self oil



lubrication device so than the lubrication points could be lubricated regularly in time.The machine



is high efficiency,low noise and long life.The some parts of machine can be adjusted by different



sizes bottle.the level is controlled by the electric probe to assure the precise the liquid level.



Features



1. With high precision me chanical filling valves,our beer filling machine stops vacuumizing when there



are no bottles.



2. The beer filling machine is equipped with external mechanical valve,inside which there is no spring



or sealing element.



3. With high pressure frothing device,it is capable of double vacuum-pumping.



4. The beer filling machine makes use of combined transmission by open gear and gearbox,and



adopts frequency conversion stepless speed control,extending the speed modulating scope.



5. The machine has an antomatic lubricating device so that the lubrication points can be automatically



lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and



long life.



6. In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will



automatically close and the auto-cleaning device will work to treat the broken bottles.





machine pictures

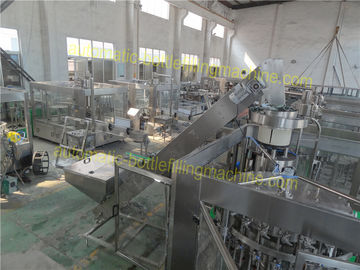

overall look



Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing 0

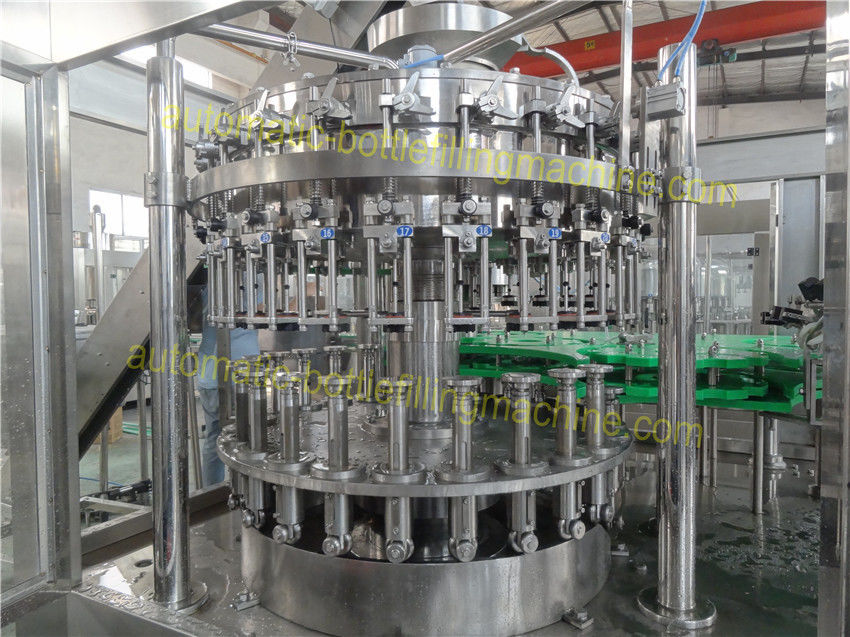

washing



Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing 1

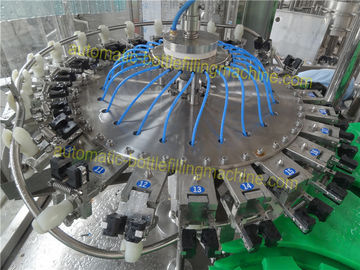

filling&capping


Crown Cap Glass Bottle Filling Machine 3500 - 5000BPH Capacity For Beer Sealing 2



technical parameter

Mode BCGF12-12-4 BCGF18-18-6 BCGF24-24-8 BCGF32-32-10 BCGF40-40-12
  1500-2000 2000-3500 3500-5000 5000-8000 8000-12000
Bottle height (mm) 100-350mm
Bottle diameter (mm) Φ52~Φ108mm
Total power(kw) 1.5 2.2 3.75 5.6 7.5
Dimension(L*W*H)(mm) 1700*1100*2300 2230*1320*2300 2750*1580*2500 3000*1850*2500 4200*2100*2500
Total weight(kg) 2000 2400 4500 5500 7000
