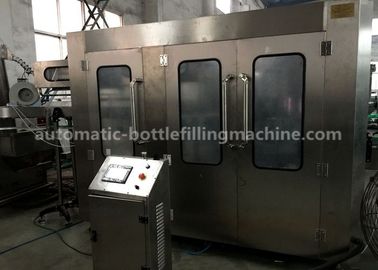

Pure / Mineral Water Bottle Filling Machine Food Grade SS 304 With 18 Rinsing Heads

Pure / Mineral Water Bottle Filling Machine Food Grade SS 304 With 18 Rinsing Heads
Pure / Mineral Water Bottle Filling Machine Food Grade SS 304 With 18 Rinsing Heads

Large Image :  Pure / Mineral Water Bottle Filling Machine Food Grade SS 304 With 18 Rinsing Heads

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Bottle Type: PET Plastic/Glass Bottle/Round/flat Bottle Filling Temperature: Room Temperature
Filling Material: Food Grade Stainless Steel 304 Weight: 3500kg
Overall Dimension(L*W*H): 2450*1800*2200mm Capacity: 6000BPH(500ml)
Warranty: One Year Processing Type: Water
High Light:

automatic bottling machine


liquid bottle filling machine


Drinking / Pure / Mineral /Water Bottle Filling Machine With 18 Rinsing




18 heads Rinshing part


1) The rotary wheel is a fully AISI304 stainless steel welded structure.


2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This


bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber


gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic


and durable.



18 heads filling part


1) The filler is designed and manufactured with application of Italy technology, providing


hardware guarantee for securing product quality and reducing loss.


2) Rotary wheel are fully made of stainless steel AISI304.


3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring


high filling accuracy and high filling speed.


4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated


by air cylinder.


5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free




6) Hydraulic pump is float-ball controlled.


7) The filler is driven by driving system positioned inside machine frame via gear transmission



6 heads capping part


1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important


to running credibility and product quality.


2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal


cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on


the track, by which it can avoid bottle without cover effectively.



Technical parameter


Model CGF18-18-6
Production capacity(500ml)(b/h) 4000-6000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80
Height(mm) Height:130-280
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)


Water consumption for Water bottle (kg/h) 1600
Spraying position 5
Dripping bottle position 3
Gas source pressure(Mpa)

normal pressure

Gas consumption(m3/mm) 0.3
Total power(kw) 5.03
Total weight(kg) 3500
Dimension(L*W*H) 2450×1800×2200


Electrical configuration


1. Main motor ----ABB


2. Water pump ----The southern pump




4. Transducer ----MITSUBISHI


5. Touch screen---- MITSUBISHI


6. Contactor----SCHNEIDER



If any requirements you need from me,please feel free to


contact me!
