Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine

Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine
Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine

Large Image :  Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF 24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE Film, standard wooden cases
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Detailed Product Description
Product Name: Water Bottling Machine Function: Rising Filling Capping
Model: CGF24-24-8 Filling Meterail: Mineral Water, RO Water,juiced Beverage
Filling Means: Normal Pressure, Normal Tempreture Suitable Bottle: PET Bottle
Other Capacity: 8000-10000BPH Weight: 5500kg
Material: Sus304 Warranty: 1 Year
High Light:

automatic bottling machine

,

liquid bottle filling machine



Plastic Bottle Mineral Water Filling And Capping Machinery



Production Line Price




product description


1. The automatic bottled water filling machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The bottle handling technical also make the different bottle changing easily without changing too many accessories.


2. This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.


3. The advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.


4.This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.


5. Independent electricity box makes sure every electrical appliance works normally.




machine pictures

overall look

This is our most popular sold model water bottling monobloc machine, CGF24-24-8, it can filling

8000 -10000 bottles hour (based on 500ml PET bottle), it adopts normal pressure normal

tempreture gravity filling, can fill various non-gas liquid, such as mineral water, distill water, flavor

water, juiced beverage etc, it can fill different size bottle, only need the bottle mouth diameter is

same.

Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine 0

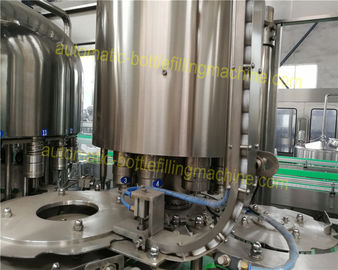

inner look



technical parameter



Model

CGF24-24-8

Capacity

8000bph (500ml PET bottle)

Bottle Height

150-320mm

Bottle Diameter

40-108mm

Filling Tenperature

ambient

Filling Technology

gravity filling

Applications

purified water and mineral water

Power supply

380V 50Hz 3Phases or customized

Total power

6.57KW

Dimension

2750*2200*2300mm

Weight

5500kg



Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine 1

electrical system



Plastic Bottle Liquid Filling Machine , Auto Sealing Industrial Bottle Filling Machine 2


we also have other capacity



Model

CGF16-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-10

CGF40-40-12

CGF50

-50-15

Number of rising heads

16

18

24

32

40

50

Number of

filling heads

12

18

24

32

40

50

Number of capping heads

6

6

8

10

12

15

Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml)

4000BPH

6000BPH

10000BPH

12000BPH

16000BPH

24000BPH

Installed capacity(KW)

3.8

4.3

6.5

8.7

9.5

12




We are not the highest quality and we are not the highest price,

but we are the highest performance cost ratio... ...
