| Product Name: | Water Bottling Machine | Function: | Rising Filling Capping |
|---|---|---|---|
| Model: | CGF18-18-6 | Capacity: | 6000B/H For 500ml Bottle |
| Filling Meterail: | Mineral Water, Spring Water, Flavor Water,juiced Beverage | Filling Means: | Normal Pressure, Normal Tempreture |
| Suitable Bottle: | PET Bottle | Bottle Diameter: | 50-108mm |
| Bottle Height: | 50-310mm | Voltage: | 380V 50hz 3phases |
| Material: | SUS304 | Warranty: | 1 Year |
| Highlight: | automatic bottling machine,automatic bottle filling system |
||
6000BPH PET Bottle Mineral Drinking Water Making Machinery
Plant For Sale
product description
This is our most popular sold model water bottling monobloc machine, CGF18-18-6, it can filling
6000 bottles hour (based on 500ml PET bottle), it adopts normal pressure normal tempreture
filling, can fill various non-gas liquid, such as mineral water, distill water, flavor water, juiced
beverage etc, it can fill different size bottle, only need the bottle mouth diameter is same.
Washing-Filling-Capping 3 in1 machine is used in this Automatic Liquid Filling Machine ,which is
a set of equipment with high precision and speed to fill liquid, it adopts bottle-beck hanging
technology, not onlyavoiding second pollution to the bottle-neck, but also realizing filling different
specs of bottles in one equipment, which greatly improved commonality of this equipment, Main -
frame machine adopts frequency controlling electric motor, whcih is much covenient to adjust
speed in scope of produciton capacity.

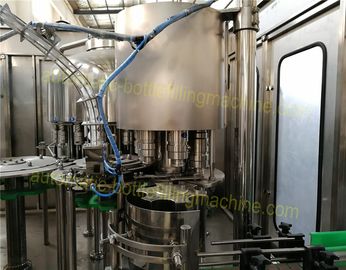

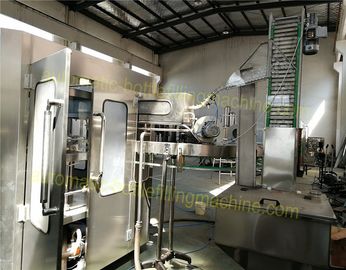

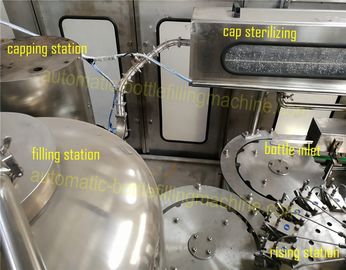

machine pictures

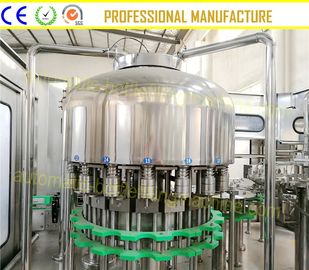

Overall look
Detailed parameter
| capacity | 5000-6000BPH 500ml /3000BPH 1L/2000BPH 1.5L/1500BPH 2L | |||
| Machine model | Rinsing head | 18 | heads | |
| Filling head | 18 | heads | ||
| Capping head | 6 | heads | ||
| Suitable bottle | materail | PET | ||
| Volume | 100-2000 | ml | ||
| Body diameter | 50-108 | mm | ||
| Body height | 50-310 | mm | ||
| Suitable cap | material | Plastic screw cap | ||
| diameter | 28-38 | mm | ||
| Main performance parameters | Producing capacity | 6000BPH(250ML-500ML) | bottles per hour | |
| Power | 3.5 | KW | ||
| Dimension | 2450*1900*2300mm | mm | ||
| Weight | 3500 | kg | ||
Electrical system
We are not the highest quality and we are not the highest price,
but we are the highest performance cost ratio... ...
