Automatic PET Bottle Blowing Machine 380V 50HZ Voltage High Adjustability



Automatic PET Bottle Extrusion Blow Molding Machine/ Bottle



Making Machine





Product Description

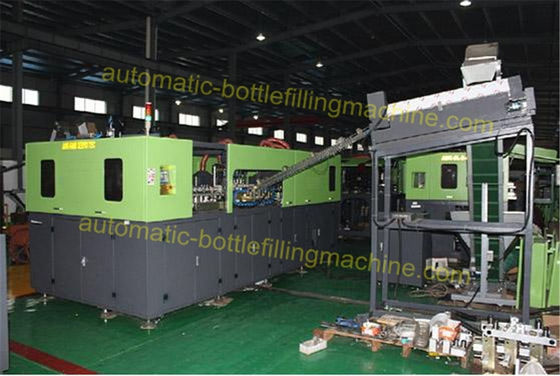

♥ JYT-6S is the fastest liner blow molding machine in mainland of China by now. OGB-6S



reaches around 6500BPH for 500ML bottle. Its baking tunnel is separated from the blow station



so that time for mold opening is shortened with a result of speedy blowing and high output,



damage to machine is lessened so as to keep reliable performance and prolong service life, as



well as machine runs more smoothly and steadily.



♥ JYT-6S automatic stretch blow molding machine is equipped with patented preform loading



system, which consists of two manipulators: rectilineal manipulator and overturning manipulator.

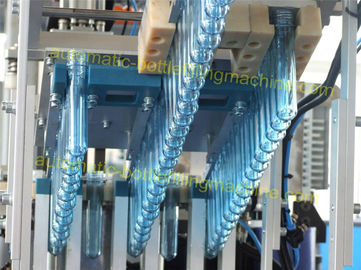

The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the



overturning manipulator grips heated preform and overturn 180 put preform to blow station with



neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The



specially designed preform loading & bottle discharging system avoid possible damage to



preform & bottle during transportation.



Technical parameter



ITEM			Unit	OGB-6S
		Theoretical output	Pcs/h	6500
PRODUCT		Max. Volume	L	2.0
		Max. height	mm	360
		Max. diameter	mm	105
MOULD		Number of cavities	/	6
		.mould plate dimension(LxH)	mm	840×360
		mould thickness	mm	198
		Mould opening stroke	mm	110
ELECTRICAL		Power		220-380V;50-60Hz
		Total power	KW	35
		Heating power	KW	32
AIR SYSTEM		Operation pressure	Mpa	0.8-1.0
		Action air consuming	M3/min	≥1.6
		Blowing pressure	Mpa	2.6-4.0
		Blowing air consuming	M3/min	≥4.8
MACHINE		Main body dimension(LxWxH)	M	4.5×1.9×2.0
		Main body weight	KG	3200
		Preform autoloader	M	2.1×1.9×2.4
		Preform automatic weight	KG	300













































♥ 500ml PET bottle automatic stretch blow molding machine:





Operation:



The standard operation of HY-A4 stretch blow molding machine includes four steps as follow:



Step 1. Put the preform into preform container and the conveyer will take the preform to



orientation units automatically.



Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking



tunnel.



Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and



blow under low pressure and high pressure, exhaust, open the mold.



♥ 500ml PET bottle automatic stretch blow molding machine



Features:



A. Stable performance with advanced PLC.



B. Conveying preforms automatically with conveyor.



C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by



itself and revolute in the rails simultaneously in the infrared preheater.



D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light



tube and the length of the reflecting board in the preheating area, and eternal temperature in the



preheater with an automatic thermostatic apparatus.



Control system:



Together with HITECH Man-Machine Interaction (MMI) control panel with user-friendly, the whole



control system presents super performance with precise control, convenient parameter setup,



obvious display and reasonable memory.



About our company



Zhangjiagang JINYATE Machinery Co., Ltd. is located in Zhangjiagang city, which is near to



Shanghai. We are an industry leader in beverage filling &package machine, we can help provide



a customized design to meet your demands. Our expertise in the follong categories will bring your



ideas to your customers.



1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);



2. barrel mineral/ pure water production line (3L,5L,10L,19L,)



3. bottling carbonated beverage production line (like coca cola);



4. bottling juice production line;



5. canning beverage production line;



6. glass bottle beverage production line;



7. carbonated beverage and juice production auxiliary plants



With the comprehensive understandeing in various ranges of beverage products and



long-time experience in import-export sector, with our profession, enthusiastic determined team,



we are proud to say that we have been shipping many order to the USA, Germany, Austrilia,



India, Africa, Malaysia, Russia..., our good quality and service win us worldwide old customeres.







If furthur learn, we will provide you more helpful information.....
