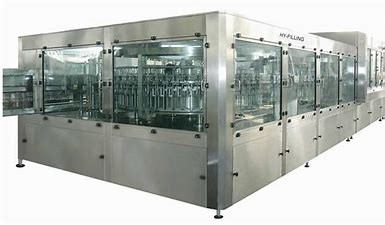

Automatic Carbonated Drinks Filling Machine 500ml Cola Pet Aluminum Tin Beer Can

Automatic Carbonated Drinks Filling Machine 500ml Cola Pet Aluminum Tin Beer Can
Automatic Carbonated Drinks Filling Machine 500ml Cola Pet Aluminum Tin Beer Can

Large Image :  Automatic Carbonated Drinks Filling Machine 500ml Cola Pet Aluminum Tin Beer Can

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: CYG-12 FXZ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Material: SUS304/316(Meet GMP Standard) Filling Range: 250ml, 330ml, 500ml, 8oz, 12oz, 16oz, Etc
Filling Pressure: Normal Pressure Capacity: 2000BPH
Color: Silver Gray Voltage: 220V/380V
Driven Type: Electric Power: 2.25kw
High Light:

Cola Pet Aluminum Tin Filling Machine

,

500ml Beer Can Filling Machine

,

Carbonated Drinks Filling Machine

Automatic Carbonated Drinks Cola Pet Aluminum Tin Equipment Beer Can Filling Machine



Carbonated drink beer can filling machine adopts counter pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned gas drinks (Cold filling temperature at 0-4 degrees Celsius). If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, vitamin water, herbal tea and so on.



1. Carbonated beverage beer can filling machine is in the digestion and absorption of the advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both absolute synchronization and coordination.
2. Isobaric filling system, controlled by pressure, accuracy is +/-1%, the liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degrees Celsius).
3. Can seaming machine is qualified for Chinese seaming standard, and no air leakage at all.
4. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip the CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant
5. Aluminum can and metal can are both available working on our seaming machine, We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.
6. If Cans stock on conveyor then sensor will inform PLC to stop the empty Can feeding in



Main parameter

Dimensions
L4000mm×W2000mm×H2100mm
Packing Speed
16-60 Bags/min (depending on products character and filling volume)
Packing Bag Size
L: 100-350mm
W : 60-200mm/80-250mm
Weight
1800KG
Air Compressed air consemed
≤0.6m³ / min
Accuracy
±1g (≤100g) / ± 1%( >100g) according to material
Application
Suitable for liquid or semifluid products packing, such as beverages, juice, ketchup, bechamel etc.



Working Procedure
1. Bag feeding
2. Coding
3. Opening
4. Filling A
5. Filling B
6. Heat sealing A
7. Heat sealing B
8. Forming and output


Description
1. According to customer demand for customized, to recommend the appropriate products to customers.
2. Storage racks devices which can Satisfy the products short stop ,which can keep the production line work continuously.
3. Good service,If you have any questions, you can communicate by telephone video.



Features

1. This CGY Series Wash-filling-capping 3-in-1unit is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. It can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

2. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

3. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor

chains.

7. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



Bottle dryer

Automatic Carbonated Drinks Filling Machine 500ml Cola Pet Aluminum Tin Beer Can 0





COMPONENTS BRAND LIST

1 PLC Siemens, Germany
2 Frequency converter Siemens, Germany
3 Contactor Schneider
4 Circuit breaker Schneider
5 Touch screen Siemens, Germany
6 Buzzer Schneider
