| Control System: | PLC+touch Screen | Power: | 7.57kw |
|---|---|---|---|
| Bottle Type: | Glass Bottle | Cap Type: | Aluminum Screw Cap |
| Weight: | 5500kg | Dimension(L*W*H): | 3250*2180*2200mm |
| Function: | Washing Filling Capping | ||
| High Light: | 7.57kw carbonated drink filling machine,8000BPH carbonated drink filling machine,8000BPH carbonated beverage filling machine |
||
Carbonated beverage filling machine
Applicable products: high-end aerated mineral water, aerated soda water, cola, sprite, aerated juice
Capacity: 6000-8000 bottles/hour
Filling principle: balanced pressure filling
Applicable bottle type: 200ml-2000ml
Filling valve: According to customer needs, use equal pressure mechanical valve/imported flow meter valve
Application:
Carbonated soda beverage filling production line is suitable for the following types of filling:
1. Fruit juice carbonated drinks. Refers to the original juice content not less than 2.5% of carbonated drinks;
2. Fruity carbonated drinks. Refers to the fruity edible essence as the main flavoring agent, the original juice content is less than 2.5% of carbonated drinks;
3. Cola carbonated drinks. Refers to a carbonated beverage containing caramel color, coke essence or a spicy or fruity flavor similar to that of cola nuts and fruits;
4. Low calorie carbonated beverages. Refers to various types of carbonated drinks and soda water with sweetener in place of sugar in whole or in part, with calories less than 75kJ/100mL;
5. Other types of carbonated drinks. Refers to contains the plant extracts or the non-fruity edible essence as the composition and supplement the human body after the exercise lost electrolytes, energy carbonated drinks, such as sports soda. Loss of electrolytes, energy, etc. after exercise in carbonated drinks, such as sports soda, etc.
Technical parameter
| Model | DGCF24-24-24-8 |
| Production capacity(500ml)(b/h) | 6000-8000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Aluminum Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | balanced pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 7.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 3250*2180*2200mm |
Soda bottling machine details description:

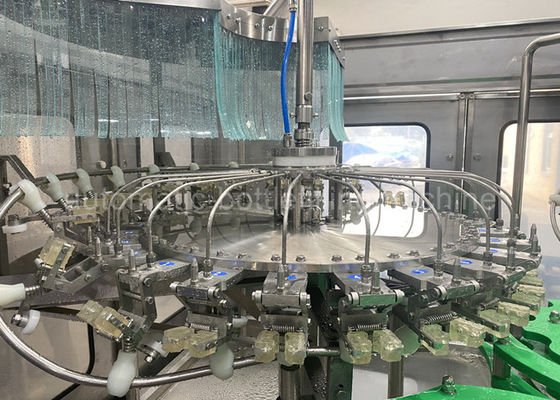

Bottle rinsing:
After the bottle enters the host machine, it enters the bottle punching machine through the transmission star wheel. The bottle clip clips the bottle mouth and turns it 180° upward along the bottle rail, making the bottle mouth downward. In the specific area of the bottle rinsing machine (determined by the water distributor -- the bottle rinsing water is pumped into the water distributor by the bottle rinsing pump, and then distributed to the bottle rinsing clamp by the water distributor through 8 pipelines), sterile water is sprayed from the bottle rinsing nozzle to flush the inner wall of the bottle.

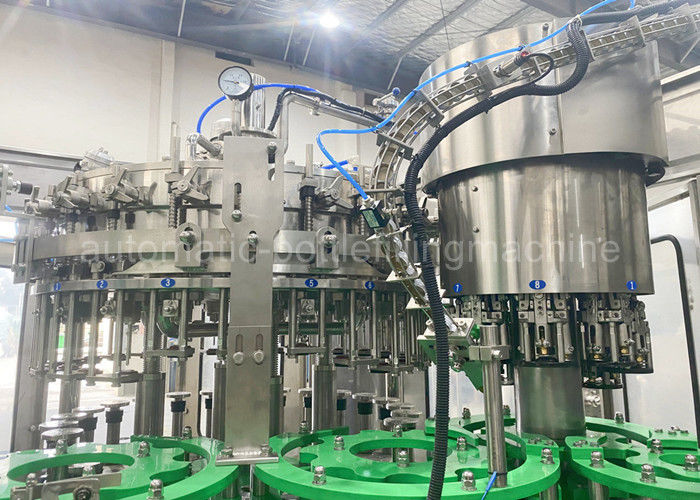

Bottle filling:
Using high precision, high speed quantitative filling valve, liquid level accurate without liquid loss, to ensure good filling quality. Besides, filling system adopts the bottle-feeding method with bottom support to avoid secondary contamination of the bottle mouth. Using the principle of equal pressure filling, filling speed, liquid level control stability.

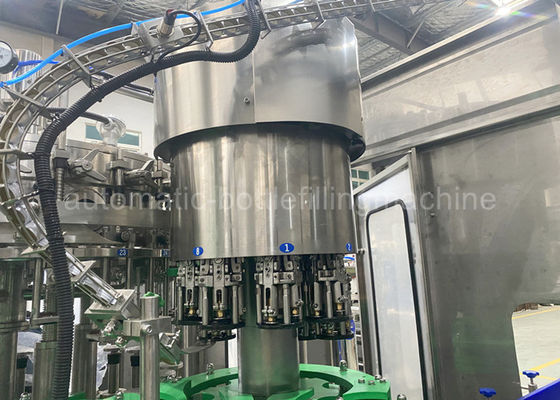

Capping:
Advanced cap-tightener structure: magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps.
