500ml Rotary Beverage Can Filling Machine With Capper

Large Image : 500ml Rotary Beverage Can Filling Machine With Capper

Product Details:

Place of Origin:	CHINA
Brand Name:	JINYATE
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	40 working days
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:

Can Filling Machine

Filling Product:

Carbonated Soft Drink, Beer, Cola

Capacity:

500-1500 Cans/hr

Driven Type:

Electric

Highlight:

Can Filling Machine with capper

500ml Beverage Can Filling Machine

500ml rotary canning line

Carbonated Beverage Can Filling Machine, Soda Canning Line, Filler Capper

This machine is used to produce all carbonated soft drink, like cola, soda, energy drink,

soft drink, sparkling water, fizzy drink, tonic water, also can produce beer.

1. Model GF12-1

2.Capacity : 1500BPH (500ml)

3. Suitable :aluminum can, tin can, PET can

4.Machine power : 1.5KW

5. Machine weight : 1000kg

6. Machine include function : Filling Capping

7. Application: Beverage, water , cola , beer

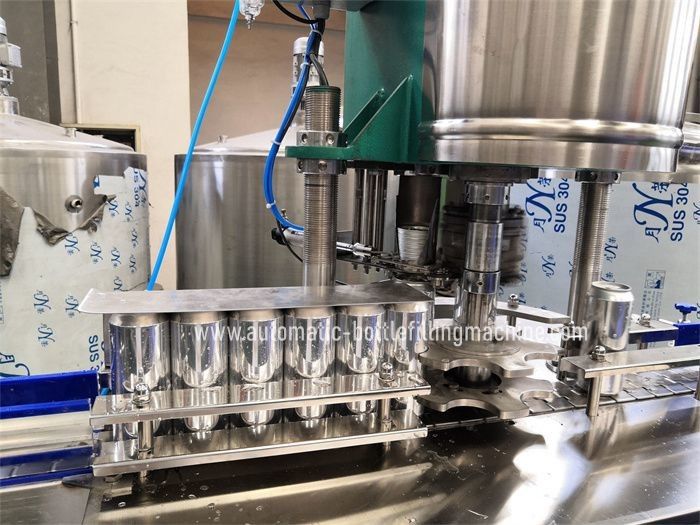

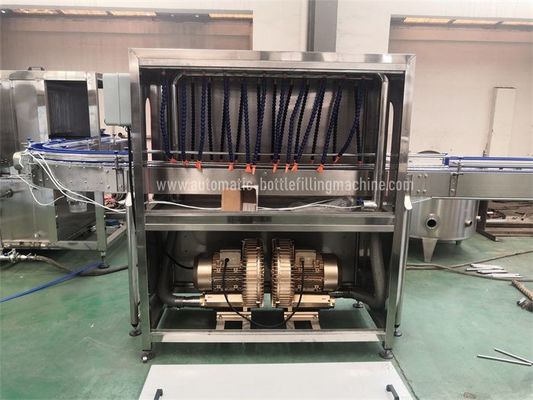

can rinser

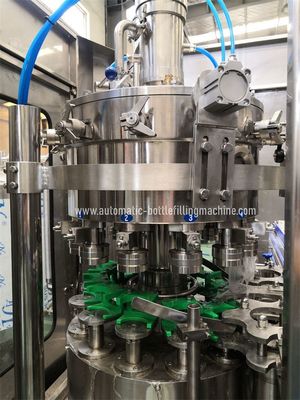

can filler

The machine adopts advanced mechanical, electrical and pneumatic control technology.
Features: working stable, accurate filling level, attractive appearance, low O2 pickup, low beer lost and

convenient maintenance.

can capper

1. The sealing machine head seal uses the biaxial structure: the feed amount of the
first and second roller can be adjusted and controlled separately.the roller by special hardness material and

good Wear resistance.

can warmer

No.	Item	Parameter
	Filling material	cola, soda, energy drink, soft drink, sparkling water, fizzy drink, tonic water, beer
1	Max. Capacity	500-1500cans/hr
2	Filling valve	12
3	Seaming head	1
4	Filling temperature	2-4℃
5	Filling method	Pressure equalization
6	Exhaust oxygen device	CO2 automatic purge of displacement
7	Beer bowl up, down regulation system	electric
8	Filling level accuracy	±2mm
9	Working type	Filler driving force from seamer
10	Inlet and outlet of the direction of can	360 degrees
11	Total power	2.5KW

We can provide complete line plants, you are welcome to contact... ...
