Zhangjiagang Jinyate Machinery Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Canning Machine | Finished Produce: | Juice, Water, Flavor Drink |
|---|---|---|---|
| Filling Heads: | 12 | Sealing Heads: | 4 |
| Capacity: | 4000-6000 Can/hr | Control: | PLC+CONVERTER |
| High Light: | 9KW Soda can filling machine,DC24V soda can filling machine,9KW Beer can filling machine |
||

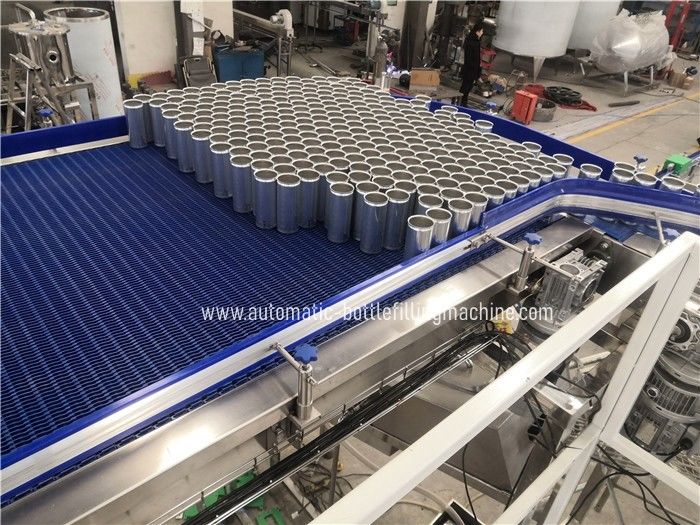

Beverage Can Filling Machine, factory price Empty Aluminum Tin Can Depalletizer
This can depalletizer is used to de-palletize various cans. It will de-palletizer the empty bottle from stack to conveyor again and again. Save much manpower, improve working efficiency.
Main elements:
1) full stack conveyor
2 )full stack elevator part
3) clamping and pushing de-palletizer part
4) bottle buffer conveyor
5) interlayer paperboard storage platform
6) empty stack conveyor
7) automatic empty stack collecting device(choosable)
8) stairs and working platform
9) electrical controlling part
Machine parameters:
| Working speed | 1-4 layers/min(200-800 bottles/min) |
| Suitable range | CAN&Glass bottle&jar |
| Total power | 7-9KW |
| Power | 380V/50HZ |
| Controlling power source | DC24 |
| Compressed air source | 0.5-0.8MPA |
| Air consumption | 0.1-0.2m3/min |
| Suitable stack size | L1200*W1000*H1600(Can customize) |
| Fulled stack storage capacity | 1-3 pieces |
Some features:
the whole full multi-layers stack elevator staition is designed with double direction clamp plate, can insure the whole full multi-layers stack keep into correct shape, in case the jar or cans will drop or break when elevat; elevator motor match with tranducer, if electric is stopped suddenly, elevator won’t drop down, will keep at same area, in sure worker’s safe; elevator is Double guide cantilever structure, stable, high quality loading ability, high area Utilization; power driving system adopt high-strength double row roller chain, stable elevating; machine top installs sensor(magnet switch), can check the fulled stack position, contorlling elevator accuracy.
