| Product Name: | Carbonated Drink Filling Machine | Function: | Rinser Filler Capper |
|---|---|---|---|
| FIlling Heads: | 24 | Capacity: | 6000 Bottles Per Hour |
| Bottle Size: | 200-2000ml PET Bottle | Control: | PLC+HMI |
| High Light: | Sparkling Carbonated Drink Filling Machine,6000BPH automatic soda filling machine,1000ML automatic soda filling machine |
||

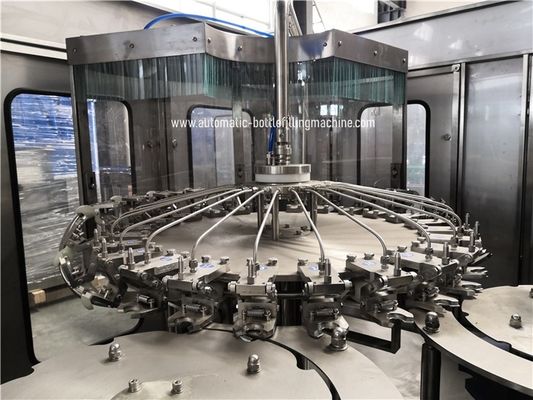

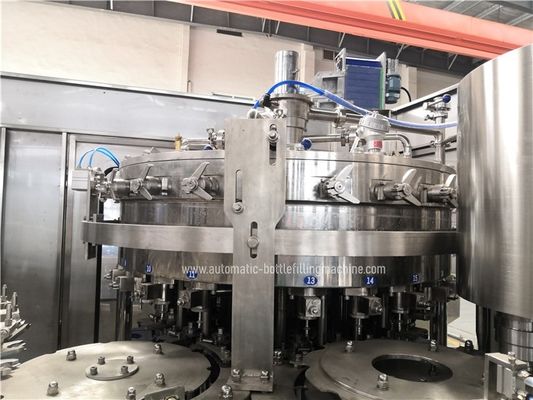

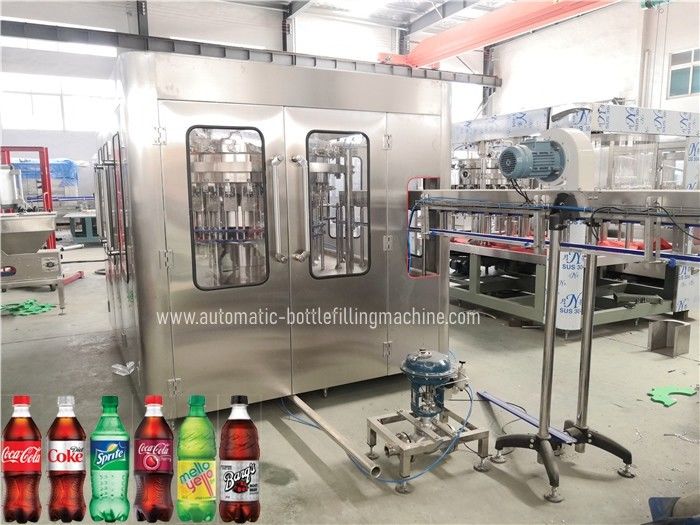

Carbonated Drink Filling Machine, Soft Drink, Soda Water, Sparkling Water bottling
This washing filling capping machine is mainly used for carbon dioxide drink, such as cola, soda water, soft drink, sparkling water, energy drink, beer and so on. The machine design is shorten the time for the drink material contact with outside, increase the sanitation condition throughout economy benefit.
The available capacity is from 1000 bottles per hour to 24000BPH.
|
Technical Parameters
|
|||||
|
Model
|
DCGF12-12-5
|
DCGF18-18-6
|
DCGF24-24-8
|
DCGF32-32-10
|
DCGF40-40-12
|
|
Capacity(500ml)(B/H)
|
2000-3000
|
3000-5000
|
5000-7000
|
7000-10000
|
10000-15000
|
|
Filling precision
|
<=+5(liquid level)
|
||||
|
Filling pressure
|
<=0.4Mpa
|
||||
|
Bottle height
|
160-320mm
|
||||
|
PET bottle specification
|
Bottle diameter 50-115mm,Height160-320mm
|
||||
|
Suitable cap shape
|
Plastic screw cap or crown cap
|
||||
|
Total power
|
4.4
|
5.2
|
6.2
|
6.2
|
7.5
|
|
Overall dimensions
|
2250*1650*2250
|
2600*1965*2250
|
2980*2200*2250
|
3880*2200*2250
|
4000*2250*2500
|
|
Weight(kg)
|
2500
|
3500
|
4500
|
6000
|
7200
|
|
You also can customize the size according to your requirement,here is only part of sample.
|
|||||
