|Driven Type:||Electric||Material:||Stainless Steel 304|
|Application:||Beverage, Commodity, Food||Dimension(L*W*H)):||3600*2200*2600mm|
|Warranty:||One Year For Free||Packaging Type:||Barrel, Bottles, Cans|

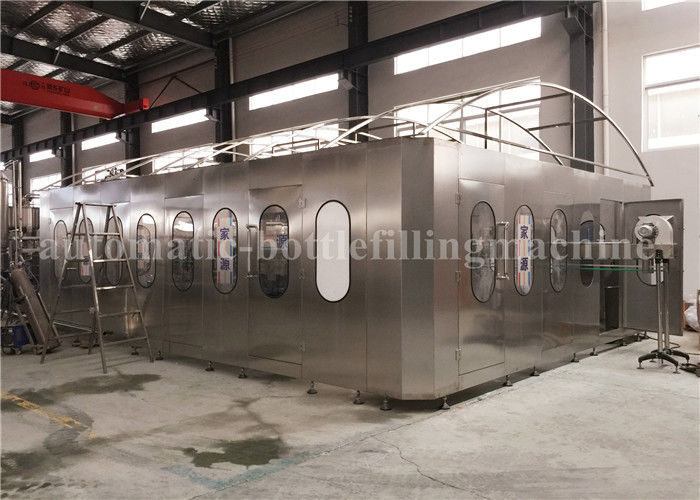

2L Soft Drink Filling Machine,
temperature adjustable Soft Drink Filling Machine,
2L carbonated water filling machine
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheel and neck supporting carrier plates.
6. Electrical controlling system: This part is frequency inverted, PLC controlled and touch screen operated
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps
The filling station using all-metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level
Filling temperature is adjustable.
Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304stainless steel construction
No bottle no capping,
Automatic stop when lack of caps
|Bottle standard (mm)||(Bottle Diameter):φ50-.φ110mm (Height):150-340mm|
|Suitable Cap shape||
Plastic srew cap
|Water pressure of Washing bottle(Mpa)||0.18-0.25|
|Water consumption for water bottle(kg/h)||1300||2000||2500||3000||3000|
|Dripping Bottle Position||2.5||3.0||3.5||7||7|
|Gas source Pressure(Mpa)||0.4|
