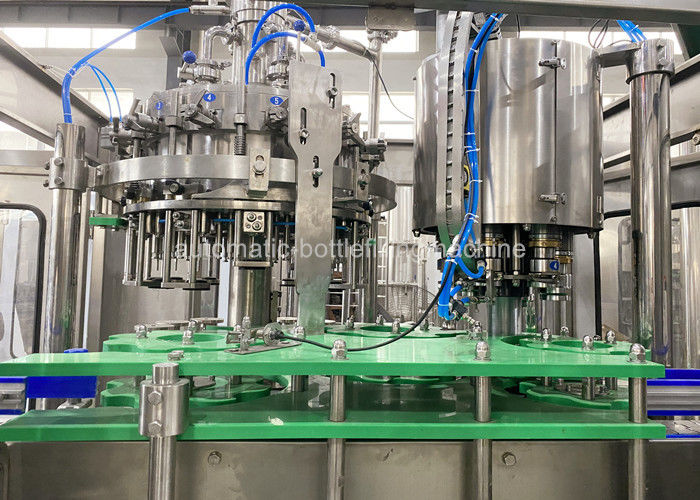

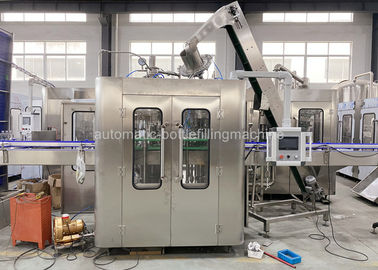

Beer 8000BPH Glass Bottle Filling Machine With Crown Cap

Beer 8000BPH Glass Bottle Filling Machine With Crown Cap
Beer 8000BPH Glass Bottle Filling Machine With Crown Cap

Large Image :  Beer 8000BPH Glass Bottle Filling Machine With Crown Cap

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Cap Type: Crown Cap,Aluminum Screw Cap
Capacity: 8000BPH(500ml) Filling Pressure: Balanced Pressure
Power: 8.07KW Dimension(L*W*H): 3600*2200*2600mm
Voltage: 380V/50Hz Weight: 5000kg
High Light:

Carbonated Drink Filler And Capper

,

8000BPH glass bottling machine

Beer Glass Bottle Filling Machine With Crown Cap, Carbonated Drink Filler Capper 2 In 1 Machine

Main parameter:

Model DCGF12-6
Theoretical Capacity 1000-2000BPH for 0.5L glass bottle
Filling heads quantity 12 pieces
Capping heads quantity 6 pieces
Filling precision ≤±5mm
Volume of glass bottle 0.25L-2L
Diameter of bottle 50-100mm
Height of bottle 150-320mm
Cap diameter Aluminum screw type cap diameter from 28mm to 38mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for water bottle 2500kg/h
Spraying position 6
Dripping bottle position 3.5
Gas source pressure 0.4Mpa
Gas consumption 0.4m³/min
Power 4.23kw
Weight 2000kg
Dimension(L×W×H) 2000*2200*2600mm



IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottles per hour you want to produce ?
4, do you need this water filling machines only or whole water production line




Product Application

This Carbonated Beverage Filling Machine Combined filling-capping 2 in 1 unit. It is used to produce glass bottled carbonated beverage. such as the cola / beer / Sprite and related aerated beverage. The DGCFfilling-capping 2-in-1unit Machinery can finish all the process filling and capping in one unit, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


Detailed description:
Filling part

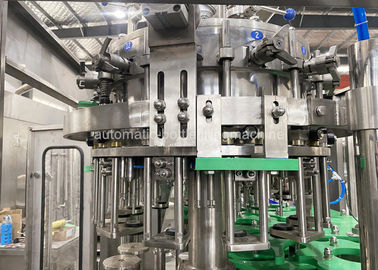

Beer 8000BPH Glass Bottle Filling Machine With Crown Cap 0
Balanced pressure filling valve,equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The machine obtains advantage of high reliability, high efficiency, high degree automation and easy operation.
The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level
Filling temperature is adjustable.
Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
No bottle, no filling

Capping part

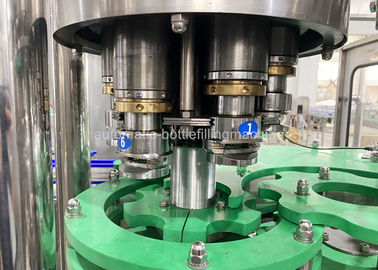

Beer 8000BPH Glass Bottle Filling Machine With Crown Cap 1
Aluminum screw capping.
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304stainless steel construction
No bottle no capping,
Automatic stop when lack of caps
