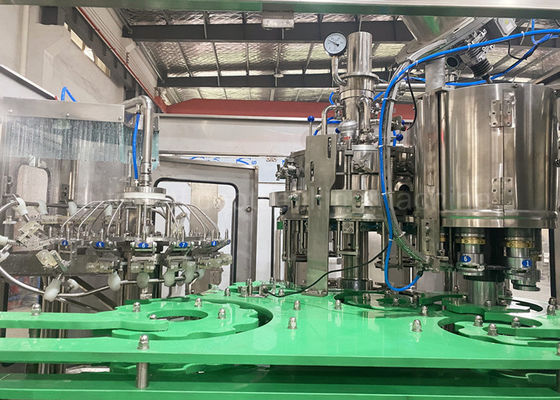

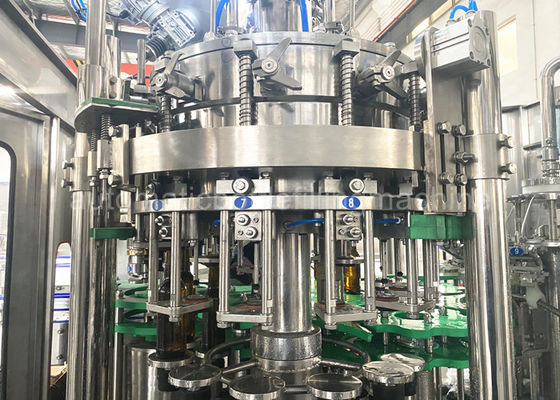

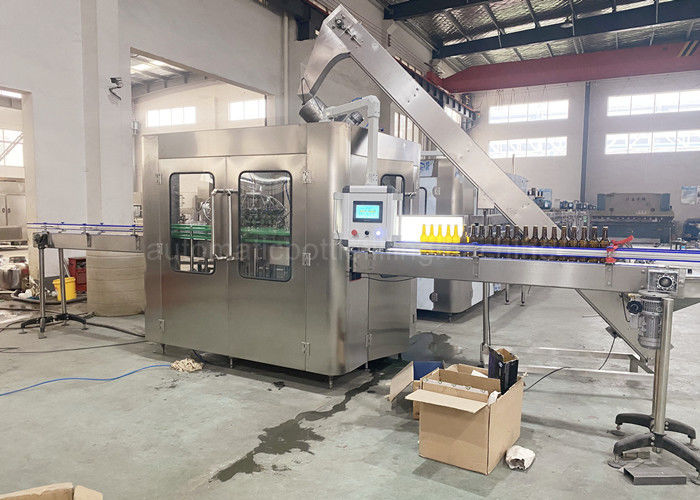

Crown Cap 340mm Glass Milk Bottle Filling Machine Balanced Pressure

Crown Cap 340mm Glass Milk Bottle Filling Machine Balanced Pressure
Crown Cap 340mm Glass Milk Bottle Filling Machine Balanced Pressure

Large Image :  Crown Cap 340mm Glass Milk Bottle Filling Machine Balanced Pressure

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF16-12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Machine Material: Stainless Steel 304
Cap Type: Crown Cap Capacity: 2000BPH(500ml)
Filling Pressure: Balanced Pressure Power: 5.03KW
Dimension(L*W*H): 2100*1500*2200mm Weight: 2000kg
High Light:

Crown cap glass milk bottle filling machine


340mm glass milk bottle filling machine


Crown cap glass bottle packing machine

Beer Glass Bottle Filling Machine Small , Carbonated Drink Glass Bottler Filler 5.03KW



Product Introduction:

This Carbonated Beverage Filling Machine Combined Washing-filling-capping in 1 unit. It is used to produce glass bottled carbonated beverage. such as the cola / beer / Sprite and related aerated beverage. The DGCF Wash-filling-capping 3-in-1unit Machinery can finish all the process rinsing filling and capping in one unit, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


Technique parameter:

Model: DGCF16-12-6
Capacity :500ml 2000
Bottle shape: round or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: Crown cap
Filling pressure Balanced pressure
Filling precision ≤±5mm
Water pressure of washing bottle(Mpa) 0.18-0.25
Water consumption of water bottle(kg/h) 1300
Spraying position 5
Dripping bottle position 2.5
Gas source pressure(Mpa) 0.4
Gas consumption(m³/min) 0.3
Total power(KW) 5.03
Overall size:(mm) 2100*1500*2200
Weight: (kg) 2000


1. Compact structured, good-looking, easy to operate and highly automated.
2. Air conveyor is directly linked with feed-in starwheels,making it easier to change bottles.

3. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement, which instead of adjusting the height of machine.
4. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
6. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
8. Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10. Equipped with CIP clean-in-place return pipeline.
11. Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without
adjustment of height of conveyor chain.
12. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13. Highly effective cap sorting and feed in system is protective for feed in and cap absence.


Crown Cap 340mm Glass Milk Bottle Filling Machine Balanced Pressure 0


Our Services
  1. One year warranty for the whole system.
  2. Free equipment installation and debugging.
  3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
  4. We can provide internship service and help you train the operator and mechanic.
  5. Free beverage production technology and process configuration.
  6. We can help you to design the product line, workshop and provide turn-key project.

IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, how many bottles per hour you want to produce ?
3, do you need this water filling machines only or whole production line
